DS-2TP21B-6AVF/W Handheld Thermal Camera + Tripod - Fever Screening

Hikvision DS-2TP21B-6AVF/W Body Temperature Handheld Thermal Camera. A fever screening thermal solution. Can be used to detect elevated skin-surface temperature (raised temperature) with high accuracy in real-time.

Part Number:

read more


Need Help ? Contact Us Request Demo
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support


Manufacturer's RRP

3594.00 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support

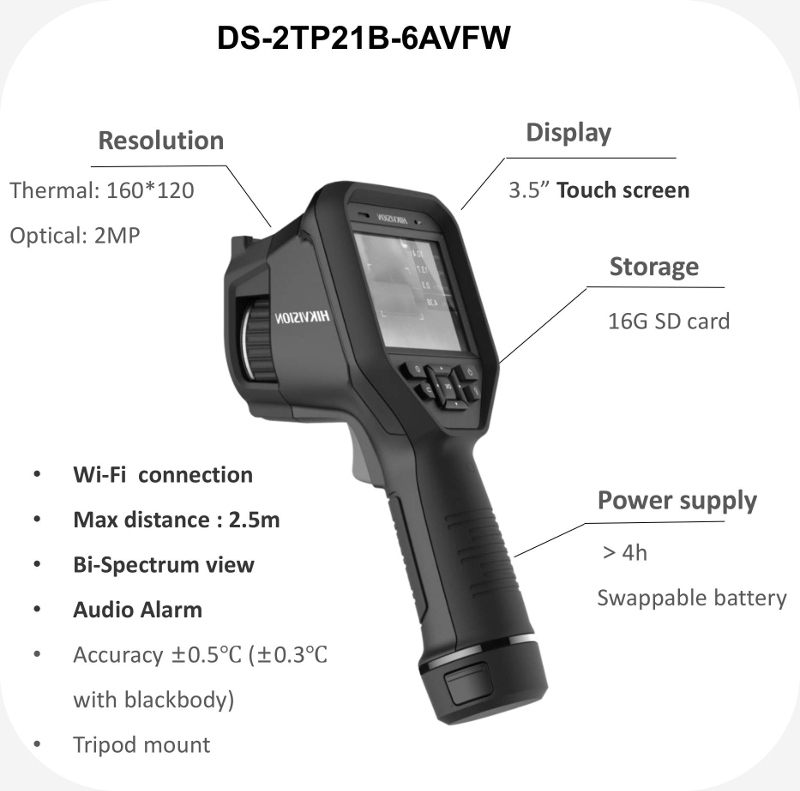

Hikvision DS-2TP21B-6AVF/W Body Temperature Handheld Thermal Camera (with WiFi)

The Hikvision DS-2TP21B-6AVF/W Thermal Camera has been designed as a an effective temperature screening thermal solution.

Specially designed to detect elevated skin-surface temperature with high accuracy in real-time. It is equipped with a 160×120 resolution thermal detector, can be widely used for preliminary temperature screening in office buildings, factories, stations, airports and other public places.

With advanced detectors and algorithms, Hikvision’s Temperature Screening Thermal Cameras can detect elevated skin-surface temperatures in moving crowds such as customs, commuters, shoppers, students, employees with accuracy up to ±0.5° C.

  • Increased safety
    • Non-contact measurement to avoid physical contact
  • AI detection
    • Reduces false alarms from other heat sources
  • High efficiency
    • One second to detect the skin temperature of a person


Hikvision DS-2TP21B-6AVF/W Key Features:

  • Thermal resolution: 160 ×120
  • 640 × 480 resolution 3.5 inch LCD touch-screen display
  • Accuracy: ±0.5°C
  • Range: 30-45°C
  • Touch-screen
  • Display fusion of thermal view and optical view
  • Supports Wi-Fi
  • Supports audio alarms
  • Automatic screen capture and upload


Fever Screening Solution with the Hand-Held DS-2TP21B-6AVF/W:

Hikvision DS-2TP21B-6AVF/W Solution Components

Hik-Thermal Hikvision Thermal App


Hikvision DS-2TP21B-6AVF/W Solution Advantages:

  • Thermographic handheld camera supports Wi-Fi, can integrate with a PC / Mobile client, and supports realtime audio alarm and automatic uploading of screen captures.
  • Touch screen to ensure user experience
  • Supports flexible temperature measurement areas
  • Accuracy is ±0.5 ℃, satisfy preliminary Temperature screening requirements


Hikvision DS-2TP21B-6AVF/W Installation Tips:

  1. The camera is recommended to install at a height of 1.5 meters, keeping the distance between the targets and the camera at 1.5 to 2.5 meters
  2. Recommend to install in a stable indoor environment without wind
  3. People pass by the thermographic camera one by one

 Thermal Camera Tripod Set Up Fever Screening

Hikvision DS-2TP21B-6AVFW Features

Hikvision Fever Screening Thermal Solutions Brochure:

Hikvision Fever Screening Brochure




Hikvision Demonstrates the difference between Thermometers vs Thermal Cameras for Elevated Body Temperature Detection (EBT) Screening



Case Study 1: Hikvion Thermal Technology In Action - Care Home

Case Study 2: Hikvion Thermal Technology In Action - Place Of Work


Please note that whilst this Thermal Camera is NOT a diagnostic tool, it can be used to identify persons with possible EBT in crowded areas, such as schools, hospitals and airports, who may require further medical testing.  It is a portable, precise and practical screening tool suitable for use alongside medical equipment and procedures.


See the full in stock range of Hivision products here , including the affordable £1113 model


Technical Specification for: Hikvision DS-2TP21B-6AVF/W Handheld Thermal Camera + Tripod - Fever Screening

Image SensorVOx Uncooled Focal Plane Arrays
Resolution 160 × 120
Pixel Interval17μm
Response Waveband 8μm to 14μm
NETDLess than 40 mK (@25°C,F#=1.1)
Focal Length 6.2mm
Focus Mode Manual
Field Of View 25° × 18.7°
IFOV 2.74 mrad
Image Frequency 25 hz
Aperture F 1.1
Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
Video Resolution 640 × 480
Thermographic Range From 30 °C to 45 °C
Accuracy ± 0.5 °C
Monitor640 × 480 resolution 3.5-inch LCD touch display
Image Mode Thermal view, B/W optical view, image fusion view are selectable
PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Digital Zoom Thermal:1×, 2×, 4×
Laser Light Support (Point to the thermography target)
CaptureThermal/Optical/Fusion image
Video Thermal/Optical/Fusion image
Text Comment
Voice Comment
StorageBuilt-in memory module (16 G)
Battery Type Dismountable and rechargeable Li-ion Battery
Battery operating time5 hrs in normal temp. with Wi-Fi, Bluetooth, supplement light off (4 hrs if all on)
Hardware Interface Type-C USB
Power Supply 5 VDC/2 A
Power Consumption Max. 4.5 W
Working Temperature 15°C to 35 °C
Protection LevelIP54
Drop Test Height 2 m (6.56 feet)
WeightWith Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)
Dimentions244 × 100 × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
