In STOCK
FREE TRIPOD

Be the first to review this product

Hikvision
DS-2TP31B-3AUF Handheld Thermal Camera + Tripod - Fever Screening


Hikvision DS-2TP31B-3AUF Body Temperature Handheld Thermal Camera. A fever screening thermal solution. Can be used to detect elevated skin-surface temperature (raised temperature) with high accuracy in real-time.

Part Number:
DS-2TP31B-3AUF Fever Screening Model

read more





List Price

£1113.60
1336.32 incl. VAT)
Add To Cart

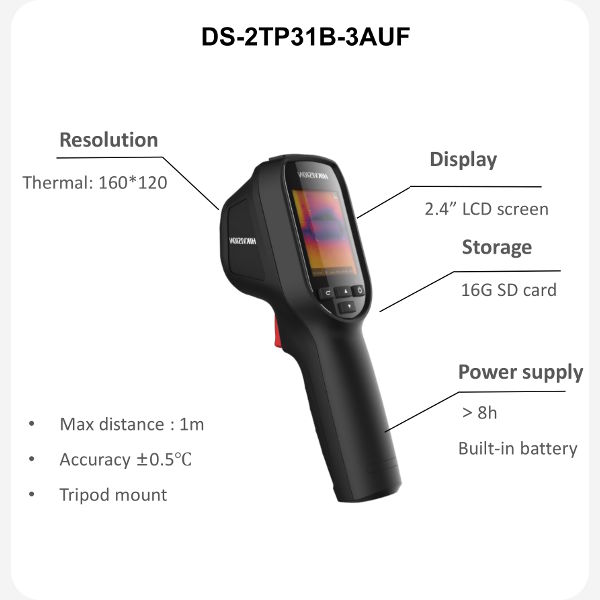

Hikvision DS-2TP31B-3AUF Body Temperature Handheld Thermal Camera

The Hikvision DS-2TP31B-3AUF handheld thermal camera has been designed specifically for the detection of elevated skin-surface temperature with high accuracy in real-time.  This Thermal Camera is equipped with a 160 × 120 resolution thermal detector and can be widely used for preliminary temperature screening in office buildings, factories, stations, airports and other public places.







Hikvision DS-2TP31B-3AUF Key Features:

  • High sensitivity sensor with 160 x 120 resolution
  • High quality 320 x 240 resolution 2.4 inch LCD display
  • Up to 4 palettes
  • Wide temperature measurement range: 30°C - 45°C
  • High temperature measurement accuracy: Up to ±0.5°C
  • Built-in rechargeable Li-ion battery
  • Up to 8 hours continuous operation



See the full in stock range of Hivision products here.



Difference between Thermometers vs Thermal Cameras
for EBT Detection / Screening







The Hikvision DS-2TP31B-3AUF Body Temperature Camera





Hikvision Elevated Body Temperature Applications:

Case Study 1: Hikvion Thermal Technology In Action - Care Home

Case Study 2: Hikvion Thermal Technology In Action - Place Of Work







Please note that whilst this Thermal Camera is NOT a diagnostic tool, it can be used to identify persons with possible EBT in crowded areas, such as schools, hospitals and airports, who may require further medical testing.  It is a portable, precise and practical screening tool suitable for use alongside medical equipment and procedures.



Technical Specification for: Hikvision DS-2TP31B-3AUF Handheld Thermal Camera + Tripod - Fever Screening

Image SensorVOx Uncooled Focal Plane Arrays
Resolution 160 × 120
Pixel Interval17μm
Response Waveband 8μm to 14μm
NETDLess than 40 mK (@25°C,F#=1.1)
Focal Length 3.1mm
Field Of View 50° × 37.2°
IFOV 5.48 mrad
Image Frequency 25 hz
Aperture F 1.1
Thermographic Range From 30 °C to 45 °C
Accuracy ± 0.5 °C
Monitor320 × 240 resolution 2.4-inch LCD touch display
PalettesBlack hot, White hot, Rainbow, Ironbow
CaptureThermal image
StorageReplaceable memory card (default 8G, support up to 128G storage)
Battery Type Rechargeable Lithium Battery
Battery operating time5 hrs continuous running
Hardware Interface Micro USB
Power Supply 3.7 V DC/0.4 A
Power Consumption Less than 1.2 W
Working Temperature 10°C to 35 °C
Protection LevelIP54
Weight350 g (0.77 lb)
Dimentions196 × 117 × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
