IN STOCK
PLUG & PLAY DESIGN

Hikvision
DS-K5604A-3XFV Face Recognition Temperature Screen Terminal; Stand


The NEW Hikvision DS-K5604A-3XF/V face recognition & temperature screening in one stylish terminal.

Part Number:
DS-K5604A-3XFV

read more





£3,273.00
£2728.00
3273.60 incl. VAT)
Add To Cart





NEW Hikvision DS-K5604A-3XFV Face Recognition Temperature Screen Terminal Complete With Stand

Hikvision DS-K5604A-3XF/V face recognition terminal has access control device like features with an integrated temperature screening function, which supports plug & play (rapid deployment, free of wiring, installation, or configuration). It can fast take skin-surface temperature, which can be widely applied in multiple scenarios.





Hikvision DS-K5604A-3XFV Face Recognition Key Features:

  • FAST Installation PLUG & PLAY design supporting rapid deployment which is free of wiring or configuration
  • 10.1 inch LCD touch-screen
  • 2 Mega pixel wide-angle lens
  • Abnormal temperature alert - Triggers a voice prompt
  • Face mask wearing alert
  • Max 50,000 faces capacity
  • Face recognition verification less than 0.2s
  • Temperature range 30-45°C with an accuracy:±0.5 °C
  • Recognition distance: 0.3 to 2 m
  • Supports 6 attendance

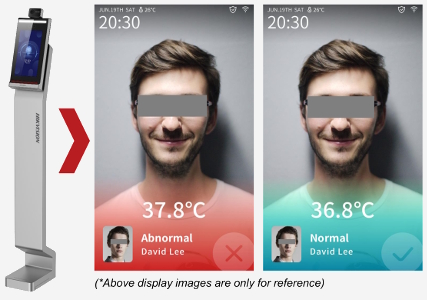

Display Screen on the Hikvision Face Recognition Terminal



Hikvision DS-K5604A-3XFV Further Features:

  • Supports Vanadium Oxide uncooled sensor to measure target‘s temperature
  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C (without black body calibration)
  • Fast temperature measurement mode: Detects face and takes temperature without identity authentication
  • Multiple authentication modes are available
  • Displays temperature measurement results on the authentication page
  • Configurable door status (open/close) when detecting abnormal temperature
  • Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
  • Integrated design with stand bracket
  • Communicates with the third-party turnstile via IO output or Wiegand
  • Adjustable supplement light brightness
  • High performance processor with deep learning algorithm
  • 50,000 face capacity and 100,000 event capacity
  • Face recognition duration < 0.2 s/User
  • Face recognition accuracy rate ≥ 99%
  • Transmits and saves the comparison results and the captured pictures to the client software or others
  • NTP, manually time synchronisation, and auto synchronisation
  • Watchdog design for protecting the device and ensuring device running properly
  • Audio prompt for authentication result



What comes with the Hikvision DS-K5604A-3XFV

  • Hikvision DS-K5604A-3XF/V
  • Mains power cable


▶ Case Study: Hikvision Walkthrough Temp. Scanner & Face Recognition Terminal





Technical Specification for: Hikvision DS-K5604A-3XFV Face Recognition Temperature Screen Terminal; Stand

DS-K5604A-3XF/VDS-K1T671TM-3XF
NEW by Hikvision
InstallationFAST! - PLUG & PLAYRequires installation
LCD Touch-Screen10.1 inch LCD touch screen7 inch LCD touch screen
StandSlightly angled for ease of useVertical
Face recognition capacity50,00050,000
Card reading capacity
Thermal imaging resolution 120 x 160120 x 160
Temperature range and accuracy30-45°C (±0.5 °C) 30-45°C (±0.5 °C)
Authentication Distance0.3-2m0.3-2m
Mask detection
Fast temperature measurement
