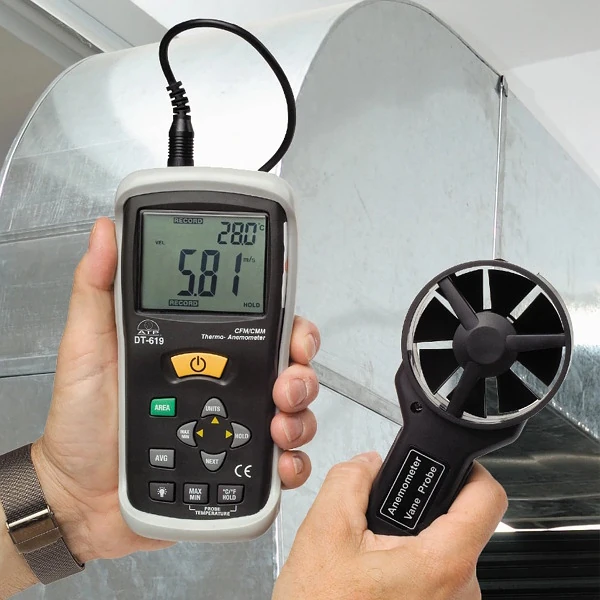

ATP AAVM-619 Remote Vane Thermo-Anemometer
The AAVM-619 remote vane thermo-anemometer measures air velocity, airflow volume and temperature. The detachable 64mm vane has a 1.1m connection cable. Excellent for ventilation surveys, air conditioning, heating and environmental monitoring.
ATP AAVM-61 Key Features:
- 0.4 to 30m/sec x 0.01
- Measures air velocity in m/sec, ft/min, km/hr, knots or mph
- Measures volume in m³/min (CMM) or ft³/min (CFM)
- Measures temperature °C or °F
- 43mm LCD display with Backlight and function indicators
- Data hold and min/max hold for airflow and temperature
- Average multiple readings for velocity or flow volume for up to 20 readings
- Volume measurements by entering the area of the duct or grille being measured
- 16 memory locations for area sizes (8 CFM, 8 CMM)
- Auto power off and low battery indicator
- Standard ¼" camera bush for tripod mounting
- Supplied with rubber boot, carry case, shoulder strap and battery
ATP AAVM-619 Technical Specifications
| Specification | m/sec | ft/min | km/hr | mph | knots | m³/min
ft³/min |
| Range (Minimum) | 0.4 | 80 | 1.4 | 0.9 | 0.8 | 0 |
| Range (Maximum) | 30 | 5900 | 108 | 67 | 58 | 999900 |
| Resolution | 0.01 | 1 | 0.1 | 0.1 | 0.1 | 0.001 |
| Accuracy | ±3 + 0.2 |
| Range (Temperature) | 0° to 50°C |
| Resolution (Temperature) | 0.1°C |
| Accuracy (Temperature) | ±2°C |
| Power | 1 x 9V PP3 Alkaline Battery (LR-61) |
| Dimensions | 162 x 76 x 39mm |
| Weight | 448g |
Why the ATP AAVM-619 Belongs in Every Professional Air Measurement Toolkit
In any professional toolkit concerned with air movement, environmental control, or building performance, accuracy and versatility are non-negotiable. The ATP AAVM-619 Velocity and Volume Thermo-Anemometer earns its place by combining reliable measurement with practical design, making it an indispensable instrument for engineers, technicians, and surveyors who need dependable data in real-world conditions.
One of the main reasons to carry the ATP AAVM-619 is its ability to measure multiple parameters with a single device. Air velocity, airflow volume, and temperature can all be assessed quickly and accurately, reducing the need to switch between tools on site. This not only saves time but also minimises the risk of inconsistent readings when conducting ventilation surveys, air-conditioning checks, or heating system assessments.
The detachable 64 mm vane, connected by a 1.1 m cable, adds further value to the ATP AAVM-619. It allows measurements to be taken in awkward or confined spaces such as ductwork, ceiling voids, or grilles without compromising operator comfort or safety. For professionals working across commercial buildings, factories, or residential properties, this flexibility is crucial when access is limited.
Another compelling reason to include the ATP AAVM-619 in your toolkit is its broad measurement range and unit flexibility. With air velocity readings from 0.4 to 30 m/sec and support for metric and imperial units, the instrument adapts easily to different specifications, standards, and client requirements. The same applies to airflow volume, with both CMM and CFM options available for precise reporting.
Usability is where the ATP AAVM-619 truly excels. The clear 43 mm backlit LCD display ensures readings are easy to interpret, even in poorly lit plant rooms or rooftop installations. Features such as data hold, minimum and maximum capture, and the ability to average up to 20 readings make it easier to produce representative results during longer surveys.
For repeat work, the ATP AAVM-619 offers practical memory functions that enhance efficiency. Storing up to 16 area sizes for ducts or grilles reduces setup time and helps maintain consistency across multiple sites. This is particularly useful for routine maintenance contracts or compliance testing where accuracy and repeatability are essential.
Durability and portability further justify choosing the ATP AAVM-619. Supplied with a rubber boot, carry case, and shoulder strap, it is well protected against everyday knocks and easy to transport between jobs. The standard tripod mount also allows for hands-free operation when stability is required.
Ultimately, the ATP AAVM-619 is more than just a measuring device; it is a productivity tool. By delivering accurate, repeatable data in a robust and user-friendly package, it supports better decision-making, clearer reporting, and higher professional standards. For anyone serious about air measurement and environmental monitoring, the ATP AAVM-619 is a smart and reliable addition to the toolkit.
❓ Frequently Asked Questions (FAQ)
Q1: What can the ATP AAVM-619 measure?
A. It measures air velocity, airflow volume, and air temperature.
Q2: Is the vane sensor detachable?
A. Yes, it features a detachable 64 mm vane with a 1.1 m connection cable.
Q3: Can airflow be displayed in different units?
A. Yes, airflow can be displayed in both metric (CMM) and imperial (CFM) units.
Q4: Is the ATP AAVM-619 suitable for duct and grille measurements?
A. Yes, volume measurements can be calculated by entering the area of the duct or grille.
Q5: Does the instrument support hands-free use?
A. Yes, it includes a standard ¼" camera bush for tripod mounting.
