Socket & See MFT5000 Multifunction Tester
The Socket & See MFT5000 18th Edition Multifunction Tester packs all essential test functions into one, affordable, easy to use unit. The MFT5000 is robust and designed for everyday testing. Featuring a colour coded, high-contrast fascia and full colour back-lit screen, the unit can be used in a whole range of environments from domestic to industrial.
Socket & See MFT5000 Key Features:
- Ideal for domestic, commercial and industrial
- Simple operation
- Large full colour display
- High accuracy no trip loop testing
- Auto sequence RCD
- Tests general and selective RCDs
- Tests AC/A and ACS/AS RCDs
- RCD ramp test
- Phase rotation
- Low Ohm continuity test
- Battery saving auto sleep mode with fast push button restart
- Certificate of conformity included
- Optional custom splash screen
- 3 Year Warranty

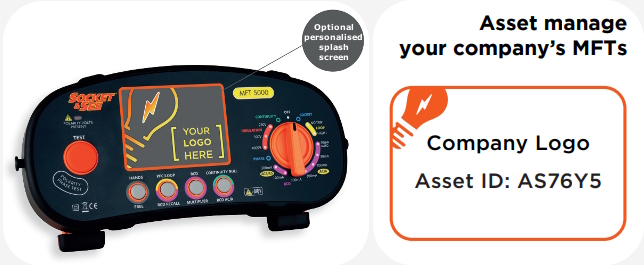

Make it yours with a personalised splash screen!
The Socket & See MFT5000 is also available with a custom splash screen, so you can truly make it your own. Add your company logo, contact details, name and even an asset ID to help asset management within your organisation. No need for unsightly and potentially damaging engraving or adhesive labels
Contact us for more information if you require this handy feature.
Optional details for your personal splash screen...
- Phone number
- Email address
- Company name
- Company logo
- Assest ID
- Something else? Let us know!
Socket & See MFT5000 Test Sequences:
Insulation Testing - Selectable ranges 250V / 500V and 1000V. The current and voltage are measured and the external resistance calculated and displayed.
Loop Testing - High current 2 wire test mode enables the user to test the true impedance of both the Line-Neutral Loop and the Line-Earth loop and therefore to establish both the PSC (prospective short circuit current) and the PFC (prospective fault current) for the installation.
No trip 3 wire test mode generates a current that is too low to trip an RCD on an otherwise healthy circuit. The No Trip test is a 3-wire test that also checks the Live, Neutral/Earth conductors are correctly connected before running the loop test.
PFC / PSC - Result displayed by pressing the PFC / PSC button after a loop test (High Current and No Trip).
RCD Testing - Individually selectable 30mA / 100mA / 300mA and 500mA (Type AC/A) and 100mA / 300mA (Type ACS / AS).
30mA Auto test - The unit will conduct all six required tests at a single touch of a button. Then when the RCD under test “trips” reset the RCD and continue to do so until the test procedure is complete. Clear PASS / FAIL indication provided on screen.
Ramp Test - Gradually increases the fault current and identifies the level of additional leakage at which the RCD trips. Useful for diagnostic testing of circuits where nuisance tripping is a problem and helps to identify the difference between an over sensitive RCD and excessive leakage from poor insulation, or equipment with high leakage.
Phase Rotation - During phase rotation measurement the amplitudes and phase angles of the three inputs L1 L2 L3 are checked against limits, allowing for mild unbalance conditions. The indication 1-2-3 is displayed for normal rotation (L2 lags L1) and 3-2-1 for reverse rotation (L2 leads L1).
Display of Phase rotation is Automatic when all three tests leads are connected to the 3 phase supply.
The MFT5000 will display .1 .2 .3 or .3 .2 .1 depending on the direction of phase rotation.
Socket Testing - Perform a quick and easy check of a sockets wiring condition.
Polarity Test Pad - Test for and identify rare reverse polarity (Live ‘Phase’ to earth/neutral and earth/neutral to Live ‘Phase’. A potentially dangerous condition that conventional loop testers may not highlight.
Continuity Test Establish the resistance of the circuit under test. Lead null function for fast and accurate measurement.
What comes with the Socket & See MFT5000?
- Socket & See MFT5000 Multifunction Tester
- 3 wire test lead set including croc clips and probes
- Pro lead: 3 x 4mm to 13A plug
- Remote switched probe
- Shoulder strap
- Hard carry case
- Printed instruction manual
- Calibration certificate
