FLIR EV86-T2 EV Charger Analyser with Meterlink®
Turn EV charger checks into clear, shareable results.
Bring testing and reporting together with the FLIR EV86-T2 EV Charger Analyser with Meterlink®. Designed for AC charging stations, it combines Type 2 and Type 1 compatibility with automated test sequences and clear pass/fail results.
Keep the job moving from the test results to the customer conversation. Transfer your findings through Meterlink and prepare a report that helps you explain what was checked, highlight concerns and plan follow-up work.
Request a FLIR EV86-T2 quote today. Tell us which charging stations you work with and how many analysers you require.
FLIR EV86-T2 Key Features:
- Type 2 and Type 1 connections: built-in Type 2 plug with a Type 1 converter supplied
- Automated test sequences: select PE pre-test, EVSE interface, RCD testing and loop impedance checks
- Control Pilot analysis: simulate CP states and inspect the CP waveform
- Fault simulation: assess charger responses to Protective Earth and Control Pilot errors
- RCD verification: perform trip-time and ramping-current tests
- Protective Earth pre-test: check PE voltage with a pass/fault indication
- Meterlink reporting: use Bluetooth to transfer results for mobile reporting and sharing

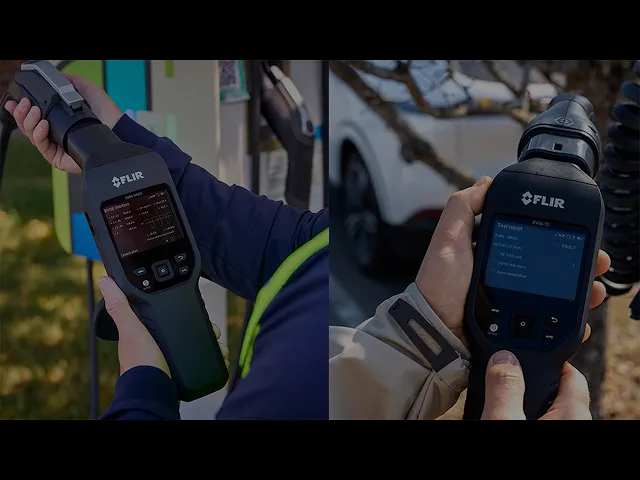

▶ Watch How to Streamline EVSE Testing & Meterlink Reporting:
Why choose the FLIR EV86-T2?
Give your EV charging station inspections a consistent structure. The EV86-T2 brings charger interface checks, fault simulation, RCD testing and loop impedance measurement into one instrument, helping you build a clearer picture of how the charging station responds.
Use automated sequences for your selected checks, then investigate results through the available diagnostic functions. For teams moving between residential and commercial sites, a repeatable testing and reporting routine makes it easier to explain findings and hand work over to colleagues.
What Comes with the FLIR EV86-T2?
- FLIR EV86-T2 EV Charger Analyser
- Type 2 to Type 1 converter
- USB Type-A to Type-C cable
- FLIR quick start guide
- Neck strap
- Carrying pouch with shoulder strap
| Features | |
| Application | AC EV charging station testing |
| Built-in connector | Type 2 |
| Additional connector compatibility | Type 1 via supplied converter |
| Display | 3.5-inch TFT-LCD |
| Single-phase EVSE interface | 250 V maximum |
| Three-phase EVSE interface | 230 / 440 V maximum |
| EVSE supply frequency | 50 / 60 Hz |
| EVSE interface maximum current | 10 A |
| Mains voltage measurement | 440 V range; ±2.0% accuracy |
| Frequency measurement | 2 kHz range; ±1 Hz accuracy |
| Duty cycle measurement | 100% range; ±5 digits accuracy |
| Loop impedance | 2.000 kΩ range; ±1.0% accuracy |
| Protective Earth pre-test | Fault indication above 50 V AC/DC between the PE conductor and touch sensor |
| CP error simulation | ✓ E-state simulation with pass/fault result |
| Proximity Pilot states | Not connected, connected, connected with latch |
| RCD test functions | Trip-time and ramping-current tests; 0° and 180° |
| Automatic test selection | PE pre-test, EVSE interface, RCD test and loop impedance |
| Voltage phase indication | L1, L2, L3, PE and N |
| Wireless connectivity | Bluetooth BLE with Meterlink; range 10 m |
| Battery | Rechargeable lithium battery |
| Battery life | 12 hours of continuous operation |
| Automatic power-off | Off, 5, 10, 20 or 30 minutes |
| Dimensions (L × W × H) | 296 × 94 × 50 mm |
| Weight | 760 g |
| Instrument safety category | CAT II 300 V; IEC 61010-1 |
| Operating temperature and humidity | -10 to +30 °C at <85% RH; +30 to +40 °C at <75% RH; +40 to +50 °C at <45% RH |
| Operating altitude | 2,000 m |
| Pollution degree | 2 |
| Warranty | Limited 3-year warranty |
❓ Frequently Asked Questions (FAQ)
Q1: Which charging stations can the EV86-T2 connect to?
A. It is designed for AC charging stations. The built-in Type 2 connector provides a direct connection to compatible Type 2 equipment, while the supplied converter supports Type 1 connections. Use it within its specified interface and safety ratings.
Q2: Which checks can I include in an automatic test sequence?
A. Select from the PE pre-test, EVSE interface, RCD test and loop impedance functions in the settings menu.
Q3: What does the Protective Earth pre-test check?
A. It checks for voltage between the PE conductor and the instrument’s touch sensor and provides a pass/fault indication before further testing.
Q4: Can I share test results from a mobile device?
A. Yes. Bluetooth connectivity works with the FLIR Meterlink app for wireless data transfer, mobile report generation and sharing.
Request a Quote for the FLIR EV86-T2
Make your next EV charging station inspection easier to specify. Send us your required quantity, charger connector types and typical testing applications so we can help you assess the EV86-T2 for your team.
Enquire today for a FLIR EV86-T2 EV Charger Analyser with Meterlink quotation.
