FLIR

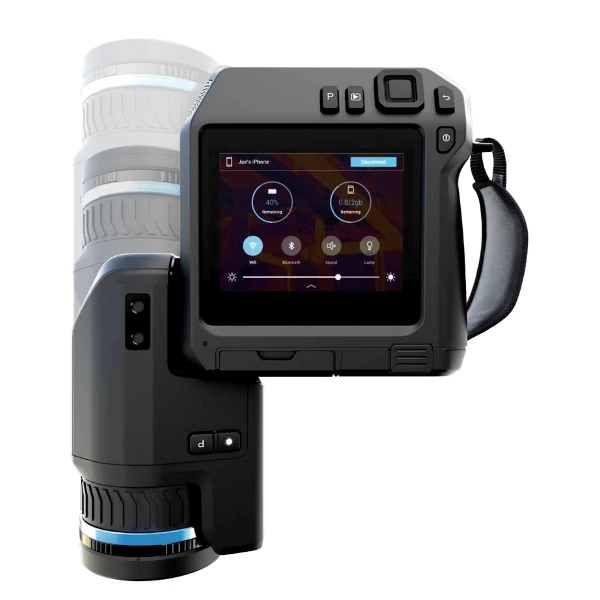

T540 Professional Thermal Imaging Camera (24° Lens)


The FLIR T540 Thermal Camera with 4 inch LCD, optical block rotation, intuitive folder & naming structure. Streams data directly to computer over Wi-Fi or USB. Enhanced data collection, analysis & sharing with FLIR‘s software solutions.

Part Number:
79302-0201

read more



Need Help ? Contact Us Request Demo Browse Accessories
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support

Product Options



Manufacturer's RRP

£15249.00
18298.80 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







FLIR T540 Thermal Camera - With Optical Rotating Block

The FLIR T540 camera is packed with performance-rich features to speed up testing and deliver precision results; boasting an ergonomic design, built-in macro mode, a razor-sharp macro lens, and analysis software that’s easy to learn!

FLIR T540 provides the resolution, crisp imagery, and temperature accuracy needed to help researchers and engineers improve product design, increase efficiency, or gain insight into a target’s thermal behaviour. With more than 160,000 temperature measurement points, the exacting detail of Macro Mode, and useful features such as 1-Touch Level/Span, this camera will help you quickly identify hot spots and potential design flaws.

Record images with 464 x 348 true native resolution or enhance to more than 645,000 pixels through UltraMax for the most accurate temperature measurements. And with activate Macro Mode you can measure small components down to 71 μm, or down to 50 μm with the macro lens!

FLIR T540 Multiple Targets, One Solution

Not every target is large enough or close enough for proper measurement with a single lens. Inter-changeable lenses are available so you can use the same camera for every target you survey. The camera auto-calibrates with each new lens to ensure it produces high-quality images and precise thermal measurements (AutoCal™ lenses):

  • 24° standard 0.15 m / optional Macro Mode
  • 42° wide angle 0.15 m
  • 14° telephoto 1.0 m


With the sensitivity to detect temperature differences of less than 0.03°C you can find hidden design flaws and track small thermal gradients. FLIR T540 offers a wide temperature range for quantifying heat generation and thermal dissipation up to 1500°C. Measurements are accurate to ±2%, promoting quality assurance and factory acceptance of printed circuit boards and other products.



▶ FLIR T540 /T530 Professional Thermal Cameras Intro:

Video thumbnail for FLIR T540 Professional Thermal Cameras



FLIR T540 Key Features:

  • Accurately troubleshoot hot spots / potential faults
  • Sleek, ergonomic design
  • Optical block rotates 180° - Comfortable all day long use!
  • 464 × 348 (161,472 pixels) IR resolution
  • UltraMax image processing - Thermal Studio Software activate UltraMax 645,888 effective pixels (quadruple image quality)
  • Bright 4 inch touchscreen LCD with auto-rotation
  • Inspection Route camera option
  • Easy to navigate menu, with 2 programmable buttons
  • WiFi streaming via FLIR Tools app
  • Streamlined reporting features: built-in voice annotations, text comments and ability to sketch directly on captured images using the touch-screen
  • Embedded GPS location
  • Rechargeable batteries - Up to 4 hrs operating time
  • Advanced on-camera measurement tools
  • Digital Camera (5 MP) built-in LED light
  • Digital zoom - Adjustable from 1 to 6x continuous
  • Wide temperature range -20 to 120°C, 0 to 650°C and 300°C to 1500°C with accurate, reliable results within ±2°C or ±2% of reading
  • High thermal sensitivity <30mK for clear, low-noise results
  • Image Modes:
    • Infrared
    • visual
    • MSX enabled - Blend together digital and thermal images, enhancing the detail level of captured images significantly
    • Picture-in-Picture - Resizable, movable
  • Colour Palettes - Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
  • Fully adjustable lenses with automatic calibration
  • Laser-assisted autofocusing - Built-in laser pointer to measure distances and automatically adjust the image so you always get the best focus
  • Real-time, fully radiometric video streaming - View images real-time on a PC and analyse every pixel in the image



▶ FLIR T540 Thermal Camera Laser-Assisted Autofocus:

Video thumbnail for FLIR T540 Thermal Camera Laser-Assisted Autofocus





▶ FLIR T540 Thermal Camera One-Touch Level/Span:

Video thumbnail for FLIR T540 Thermal Camera One-Touch Level/Span



FLIR Thermal Camera T-Series Diagram





FLIR T540 Comparison:

Full FLIR Thermal Camera Range Comparison Chart

FLIR T-Series Brochure



What comes with the FLIR T540?

  • FLIR T540 Thermal Camera (select lens via dropdown)
  • FLIR Thermal Studio Software (1-Yr Subscription)
  • 2 x Rechargeable Batteries and Charger
  • Front Lens Cap
  • Power Supplies
  • Printed Documentation
  • 8GB SD Card
  • USB Cables
  • Lanyards
  • Hard Transport Case



Comparison Chart for: FLIR T540 Professional Thermal Imaging Camera (24° Lens)

T530T540T560T840T865
IR resolution320 × 240 (76,800 pixels)464 × 348 (161,472 pixels)640 × 480 (307,200 pixels)464 × 348 (161,472 pixels)640 × 480 (307,200 pixels)
UltraMax resolution307,200 pixels645,888 pixels1.2 MP645,888 pixels1.2 MP
MSX image enhancement
Colour viewfinder
Thermal sensitivity<0.03°C<0.03°C<0.03°C<0.03°C<0.03°C
Temperature range-20°C to 650°C (-4°F to 1,202°F)-20°C to 1,500°C (-4°F to 2,732°F)-20°C to 1,500°C (-4°F to 2,732°F)-20°C to 1,500°C (-4°F to 2,732°F)-40°C to 2,000°C (-40°F to 3,632°F)
Optional to 1,200°C (2,192°F)
Field of viewLens dependentLens dependentLens dependentLens dependentLens dependent
Measurement tools3 spotmeters, 3 area boxes (max/min), hot spot, cold spot, User Presets (1 & 2), Delta T3 spotmeters, 3 area boxes (max/min), hot spot, cold spot, User Presets (1 & 2), Delta T3 spotmeters, 3 area boxes (max/min), hot spot, cold spot, User Presets (1 & 2), Delta T3 spotmeters, 3 area boxes (max/min), hot spot, cold spot, User Presets (1 & 2), Delta T10 spotmeters, 5 area boxes (max/min), hot spot, cold spot, user presets (1 & 2), Delta T
Communication modesUSB, Wi-Fi, Bluetooth, Display PortUSB, Wi-Fi, Bluetooth, Display PortUSB, Wi-Fi, Bluetooth, Display PortUSB, Wi-Fi, Bluetooth, Display PortUSB, Wi-Fi, Bluetooth, Display Port
Touchscreen4 in (10.16 cm)4 in (10.16 cm)4 in (10.16 cm)4 in (10.16 cm)4 in (10.16 cm)
On-screen text, image sketch
Voice annotation
Laser pointer
METERLiNK
Radiometric JPEG
IR video storage
Built-in GPS/Compass



Accessory Code Description Price (Ex VAT)
T199347ACC Hard transport case £319.00 ADD
T300437ACC Lens Bag £119.00 ADD
T198495 Nylon Pouch with Shoulder Strap £83.00 ADD
T199300ACC Battery £149.00 ADD
T199610 Battery charger £209.00 ADD
T911633ACC Power supply for battery charger £79.00 ADD
T911630ACC Power supply for camera 15 W/3 A £63.00 ADD
T911845ACC USB Type-C to HDMI with Power Delivery £64.00 ADD
T911631ACC USB 2.0 A to USB Type-C cable 0.9m £33.00 ADD
T911705ACC USB Type-C to USB Type-C cable (USB 2.0 standard) 1.0m £34.00 ADD
T199588 14° Lens with Case £1,599.00 ADD
T199589 24° Lens (f=17 mm) with Case £1,599.00 ADD
T199590 42° Lens (f=10 mm) with Case £1,599.00 ADD
T300095 IR Lens 6° with case £5,499.00 ADD
T300238 Macro Lens 2.0x with Case £4,199.00 ADD
T197771ACC Bluetooth Headset £169.00 ADD
T199609 Macro mode 71/103 µm (Only valid together with the 24°) £1,299.00 ADD
T300030 No radio option £1,089.00 ADD
T850111 Dual Streaming Option £1,449.00 ADD
T850105 Inspection route - Camera firmware upgrade £2,099.00 ADD
