Fluke
64 MAX Infrared Thermometer (IR)


The FLUKE 64 MAX is a lightweight, compact infrared (IR) thermometer built for the harshest environments & works even when you’re not able to be there!

Part Number:
FLUKE-64 MAX

read more



Need Help ? Contact Us Request Demo
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support



Manufacturer's RRP

£181.00
217.20 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







FLUKE 64 MAX Infrared Thermometer (IR)

The FLUKE 64 MAX is built for your environment - It takes the heat, the dust and water and a 3 meter drop. And now, internal memory and unattended monitoring!

The FLUKE 64 MAX IR thermometer has the precision you need to do your job accurately and will not break your budget. Maintenance professionals need quick, easy and economical ways to measure temperature on equipment that often reveals pending problems.



FLUKE‘s 64 MAX NEW Features Gets You Well On Your Way To Problem Solving:

  • 20:1 distance to spot for improved measurement accuracy
  • Get your tool to work when you are busy elsewhere... capture up to 99 temperature measurements unattended
  • 30 hour battery life so your tool can perform as long as you need it to
  • A flashlight to help you see in dark environments

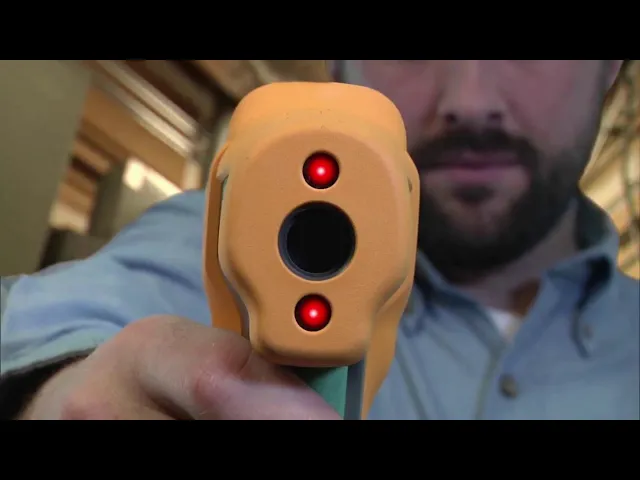

▶ Video: FLUKE 62 MAX Infrared Thermometer (IR) Overview!

Video thumbnail for the FLUKE 62 MAX Infrared Thermometer (IR)


FLUKE 64 MAX Key Features:

  • Precise laser technology for more accurate and repeatable measurements
  • Temperature accuracy of up to ± 1℃ or ± 1% of reading whichever is greater with 20:1 distance to spot ratio
  • Flashlight and large, easy-to-read backlit LCD display for easy viewing even in dark environments
  • IP54 rated for extra protection against airborne contaminants
  • Get your tool to work when you can’t - set time and desired interval between measurements and Auto Capture will capture spot temperatures unattended
  • 99 data point logging
  • Displays the minimum, maximum or average temperature, or the difference between two measurements
  • Hi and Lo alarms for rapid display of measurements outside set limits
  • Small and lightweight design fits easily into your tool box
  • Powered by one (1) AA alkaline battery
  • Three year warranty



FLUKE 64 MAX Example Applications:

  • Transformers
  • Motors
  • Pumps
  • Panels
  • Breakers
  • Compressors
  • Duct
  • Steam lines
  • Valves
  • Vents



What comes with the 64 MAX?

  • FLUKE 64 MAX Infrared Thermometer
  • Instruction Sheet
  • 3 Year warranty from FLUKE



Comparison Chart for: Fluke 64 MAX Infrared Thermometer (IR)

64 MAX62 MAX+62 MAX
Temperature range- 30 °C to 600 °C (-22 °F to 1112 °F)- 30 °C to 650 °C (-22 °F to 1202 °F)- 30 °C to 500 °C (-22 °F to 932 °F)
Accuracy (Calibration geometry with ambient temperature 23 °C +/- 2 °C)± 1.0 °C or ± 1.0 % of reading, whichever is greater± 1.0 °C or ± 1.0 % of reading, whichever is greater± 1.5 °C or ± 1.5 % of reading, whichever is greater
± 2.0 °C at -10 °C to 0 °C± 2.0 °C at -10 °C to 0 °C± 2.0 °C at -10 °C to 0 °C
± 3.0 °C at -30 °C to -10 °C± 3.0 °C at -30 °C to -10 °C± 3.0 °C at -30 °C to -10 °C
Optical resolution20:1 (calculated at 90 % energy)12:1 (calculated at 90 % energy)10:1 (calculated at 90 % energy)
Response time (95 %)< 500 ms (95 % of reading)< 300 ms (95 % of reading)< 500 ms (95 % of reading)
Spectral response8 to 14 microns8 to 14 microns8 to 14 microns
Emissivity0.10 to 1.000.10 to 1.000.10 to 1.00
Display resolution0.1 °C (0.2 °F)0.1 °C (0.2 °F)0.1 °C (0.2 °F)
Repeatability (% of reading)± 0.5 % of reading or ± 0.5 °C (whichever is greater)± 0.5 % of reading or ± 0.5 °C (whichever is greater)± 0.8 % of reading or ± 1 °C (whichever is greater)
Auto CaptureSet time and interval to capture up to 99 measurements--
Internal memory99 data point logging capability--
Flashlight--
Power1 AA alkaline battery1 AA alkaline battery1 AA alkaline battery
Battery life30 hours with laser and backlight on8 hours with laser and backlight on10 hours with laser and backlight on
Weight255 g255 g255 g
Size(175 x 85 x 75) mm(6.88 x 3.34 x 2.95) inches
Operating temperature0 °C to 50 °C (32 °F to 122°F)0 °C to 50 °C (32 °F to 122°F)0 °C to 50 °C (32 °F to 122°F)
Storage temperature-20 °C to 60 °C (-4 °F to 140 °F) (without battery)-20 °C to 60 °C (-4 °F to 140 °F) (without battery)-20 °C to 60 °C (-4 °F to 140 °F) (without battery)
Operating humidityNon- condensing @ ≤ 10 °C (50 °F)Non- condensing @ ≤ 10 °C (50 °F)Non- condensing @ ≤ 10 °C (50 °F)
≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F)≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F)≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F)
≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F)≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F)≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F)
≤ 45 % RH @ 40 °C (104 °F) to 50 °C (122 °F)≤ 45 % RH @ 40 °C (104 °F) to 50 °C (122 °F)≤ 45 % RH @ 40 °C (104 °F) to 50 °C (122 °F)
Operating altitude2000 meters above mean sea level2000 meters above mean sea level2000 meters above mean sea level
Storage altitude12,000 meters above mean sea level12,000 meters above mean sea level12,000 meters above mean sea level
Drop test3 meters3 meters3 meters
Implement standardQ/ASF01Q/ASF01Q/ASF01
Standards and agency approval
ComplianceIEC 61010-1: Pollution Degree 2IEC 61010-1: Pollution Degree 2IEC 61010-1: Pollution Degree 2
Laser safetyIEC 60825-1 Class 2, 650 nm, < 1 mWIEC 60825-1 Class 2, 650 nm, < 1 mWIEC 60825-1 Class 2, 650 nm, < 1 mW
Ingress protection ratingIP 54 per IEC 60529IP 54 per IEC 60529IP 54 per IEC 60529
Warranty3 years3 years3 years
