Fluke
902 FC True-rms Wireless HVAC Clamp Meter


FLUKE 902 FC True-RMS Wireless HVAC Clamp Meter is a dual-rated CAT III 600 V, CAT IV 300 V meter. Perform many essential HVAC system measurements: microamps for testing pilot light sensors, resistance, ac current & ac/dc voltage, capacitance & contact temperature - all with just one tool!

Part Number:
FLUKE-902 FC

read more



Need Help ? Contact Us Request Demo Browse Accessories
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support



Manufacturer's RRP

£361.00
433.20 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







FLUKE 902 FC True-RMS Wireless Clamp Meter For HVAC Systems

The rugged, dual-rated FLUKE 902 FC Clamp Meter performs the essential measurements of HVAC systems like dc microamps, resistance up to 60 kΩ, ac current, ac/dc voltage, capacitance and contact temperature - eliminating the need to carry multiple tools. Its small body is easy to hold and the jaw fits perfectly in tight workspaces.

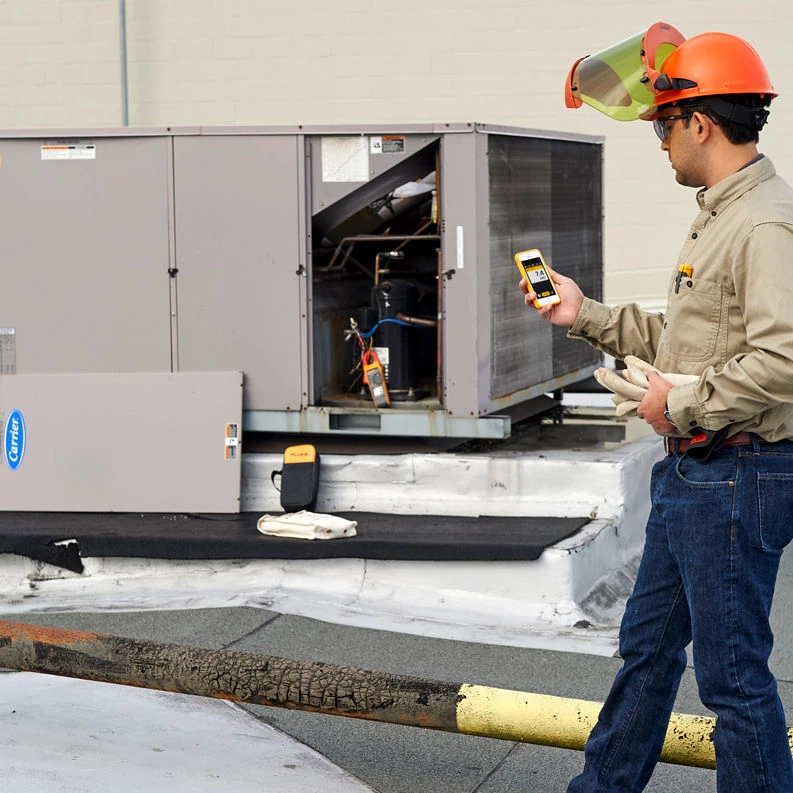

Helps HVAC technicians work more efficiently on the work site.

This clamp meter comes complete with FLUKE Connect wireless connectivity to help HVAC technicians improve productivity in the field.



FLUKE 902 FC Key Features:

  • A wireless FLUKE Connect enabled clamp meter designed specifically for the needs of HVAC technicians
  • Offers 200 µA dc current measurements to measure flame rod
  • Extends resistance range to measure thermistors up to 60 kΩ
  • Captures flue gas temperature
  • Measures start and run motor capacitors
  • Measures variable frequency drive performance
  • Measures ac current to 600 A, ac and dc voltage to 600 V, resistance to 60 kΩ
  • Measures temperature from -10 °C to 400 °C (14 °F to 752 °F)



What comes with the FLUKE 902 FC?

  • FLUKE 902 FC True-RMS HVAC Clamp Meter
  • TL75 test leads
  • 1 x 80BK integrated DMM temperature probe
  • 2 x AA alkaline batteries
  • Soft carrying case
  • User‘s manual





▶ Video: What Clamp Meter Do I Need? (Commercial / Residential Application)

Video thumbnail for FLUKE Clamp Meter for Commercial / Residential Application



Comparison Chart for: Fluke 902 FC True-rms Wireless HVAC Clamp Meter

365376 FC381902 FC
ApplicationIndustrial electricalIndustrial electricalIndustrial electricalHVAC/R
AC current
AC volts
Resistance
Continuity
DC volts
DC current
True-rms
Frequency
Min/max/avgMin/Max onlyMin/Max only
Temperature
Capacitance
Special features
Fluke Connect™ enabled
Inrush current mode
Low-pass filter
18” iFlex Flexible Current ProbeIncludedIncluded
10” iFlex Flexible Current ProbeOptionalOptional
Remote displayDetachable with cableDetachable magnetic
Flashlight/torch
Display
Display hold
Backlight
Specifications
Jaw opening18 mm ( .7”)34 mm (1 .33”)34 mm (1 .33”)30 .5 mm (1 .2”)
Current range ac rms0 to 200 .0 A0 to 999 .9 A0 to 999 .9 A0 to 600 .0 A
Accuracy ac current (50/60 Hz)2 % ± 5 counts2 % ± 5 counts2 % ± 5 counts2 % ± 5 counts
AC responseTrue-rmsTrue-rmsTrue-rmsTrue-rms
Current range dc0 to 200 .0 A0 to 999 .9 A0 to 999 .9 A0 to 200 μA
Accuracy dc current2 % ± 5 counts2 % ± 5 counts2 % ± 5 counts1 % ± 5 counts
Voltage range ac600 .0 V0 to 1000 V0 to 1000 V0 to 1000 V
Accuracy ac voltage1 .5 % ± 5 counts1 .5 % ± 5 counts1 .5 % ± 5 counts1 .5 % ± 5 counts
Voltage range dc600 .0 V0 to 1000 V0 to 1000 V0 to 600 .0 V
Accuracy dc voltage1 .5 % ± 5 counts1 % ± 5 counts1 % ± 5 counts1 % ± 5 counts
Resistance range0 to 6000 Ω0 to 60 kΩ0 to 60 kΩ0 to 60 kΩ
Frequency measurement range500 Hz500 Hz
Unit power
Auto off
Warranty and safety
Warranty (years)3333
Category ratings (EN61010-1)CAT III 600 VCAT III 1000 V, CAT IV 600 VCAT III 1000 V, CAT IV 600 VCAT III 600 V, CAT IV 300 V



Accessory Code Description Price (Ex VAT)
AC220 AC220 SureGrip Alligator Clip Set £63.00 ADD
AC285 AC285 SureGrip™ Alligator Clip Set £33.00 ADD
AC87 AC87 Heavy Duty Bus Bar Clip Set £65.00 ADD
AC89 AC89 Heavy Duty Insulation Piercing Test Clip £68.00 ADD
L206 Deluxe Hat Light: 3 super bright white LEDs 360° Rotating clip Special hard-hat attachment included! 40-hour battery life Water resistant £56.00 ADD
TL224 TL224 SureGrip™ Silicone Test Lead Set £42.00 ADD
TP1-1 TP1 Test Probes £25.00 ADD
80PK-8 80PK-8 Pipe Clamp Temperature Probe (Type K) £257.00 ADD
80PK-9 80PK-9 General Purpose Probe (Type K) £94.00 ADD
