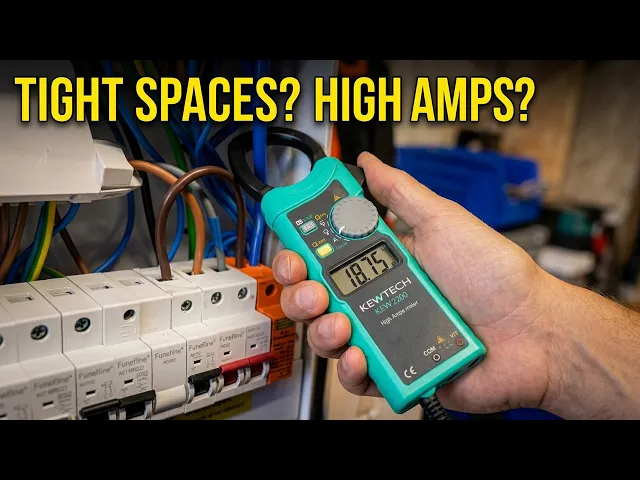

Kewtech KEW2200 1000A AC Clamp Meter
High current capacity. Slim jaws. Easier access.
Make current measurements easier in crowded distribution boards with the Kewtech KEW2200 1000A AC Clamp Meter. Its slim, teardrop-shaped jaws are just 10 mm thick, helping you reach conductors where space is limited. With AC current measurement up to 1,000 A and a finest resolution of 0.01 A, it brings useful measurement capability to a compact, lightweight instrument.
The KEW2200 also measures AC and DC voltage up to 600 V, resistance and continuity, giving you essential multimeter functions alongside clamp current measurement. Auto-ranging simplifies range selection, while data hold lets you retain a displayed reading. Weighing approximately 120 g including batteries, it is easy to carry between jobs.
Request a quote for the Kewtech KEW2200 today. Ask for pricing and availability, and tell us the quantity you need for your team.
▶ Reasons to buy a Kewtech KEW2200:
Kewtech KEW2200 Key Features:
- Slim jaws for easier access: The 10 mm thick, teardrop-shaped jaws help you work around conductors in distribution boards and accommodate conductor diameters up to 33 mm
- AC current measurement up to 1,000 A: Three automatically selected ranges provide a finest current resolution of 0.01 A
- AC and DC voltage measurement: Measure up to 600 V, with finest resolutions of 1 mV AC and 0.1 mV DC
- Resistance and continuity testing: Measure resistance across ranges up to 40 MΩ and use the audible continuity buzzer for continuity checks
- Automatic range selection: Auto-ranging supports current, voltage and resistance measurements
- Data hold: Retain a displayed measurement while you read or record the result
- Sleep function: Helps conserve battery power between measurements
- Lightweight, portable design: Approximately 120 g including batteries, supplied with a carry pouch with belt loop
Why Choose the Kewtech KEW2200?
✓ Make access easier in crowded distribution boards
Jaw shape matters when you are working around closely positioned conductors. The KEW2200 combines a slim 10 mm jaw thickness with a teardrop profile, helping you position the clamp in restricted spaces. Its 33 mm conductor capacity provides useful working clearance while keeping the instrument compact.
✓ Bring essential measurements together
Move between AC current checks, AC/DC voltage measurements, resistance testing and continuity checks with one instrument. Auto-ranging reduces manual range selection, while data hold gives you time to note a reading. Supplied G7 test leads, batteries and a carry pouch complete a practical package for everyday electrical testing.
What Comes with the Kewtech KEW2200?
- Kewtech KEW2200 1000A AC Clamp Meter
- G7 Test Leads
- Carry Pouch with Belt Loop
- 2 x 1.5 V AAA Batteries
- Instruction Manual
Specifications:
| Features | |
| Current and Voltage Measurement |
| AC current ranges | 40.00 / 400.0 / 1,000 A, auto-ranging |
| Finest AC current resolution | 0.01 A |
| AC current accuracy | ±1.4% of reading ±6 digits at 50/60 Hz; ±1.6% of reading ±6 digits at 45–65 Hz |
| AC voltage ranges | 4.000 / 40.00 / 400.0 / 600 V, auto-ranging |
| Finest AC voltage resolution | 1 mV |
| AC voltage accuracy | ±1.8% of reading ±7 digits at 45–65 Hz; ±2.3% of reading ±8 digits at 65–500 Hz |
| DC voltage ranges | 400.0 mV / 4.000 / 40.00 / 400.0 / 600 V, auto-ranging |
| Finest DC voltage resolution | 0.1 mV |
| DC voltage accuracy | ±1.0% of reading ±3 digits |
| Reading type | Averaging |
| Resistance, Continuity and Operating Functions |
| Resistance ranges | 400.0 Ω; 4.000 / 40.00 / 400.0 kΩ; 4.000 / 40.00 MΩ, auto-ranging |
| Resistance accuracy | ±2.0% of reading ±4 digits up to 400 kΩ; ±4.0% of reading ±4 digits on the 4 MΩ range; ±8.0% of reading ±4 digits on the 40 MΩ range |
| Continuity buzzer | ✓ Buzzer sounds below 50 ±30 Ω |
| Continuity protection | Fuseless electronic protection up to 600 V |
| Auto-ranging | ✓ Current, voltage and resistance |
| Data hold | ✓ |
| Sleep function | ✓ |
| Safety, Power and Physical Specifications |
| Jaw thickness | 10 mm |
| Maximum conductor diameter | 33 mm |
| Measurement category: AC current | CAT III 600 V |
| Measurement categories: AC/DC voltage | CAT III 300 V / CAT II 600 V |
| Applicable standards | IEC 61010-1, IEC 61010-031, IEC 61010-2-032 and IEC 61326 (EMC) |
| Pollution degree | 2 |
| Power supply | 2 × 1.5 V AAA batteries, R03/LR03 |
| Dimensions, L × W × D | 190 × 68 × 20 mm |
| Weight | Approximately 120 g including batteries |
❓ Frequently Asked Questions (FAQ)
Q1: Can the Kewtech KEW2200 measure DC current?
A. No. The KEW2200 measures AC current up to 1,000 A. Its voltage functions cover both AC and DC measurements up to 600 V.
Q2: Is the KEW2200 a True RMS clamp meter?
A. No. The KEW2200 uses an averaging measurement method.
Q3: What size conductor can the jaws accommodate?
A. The jaws accommodate conductors up to 33 mm in diameter. Their slim 10 mm thickness and teardrop shape help with access in distribution boards.
Q4: What are the KEW2200’s measurement category ratings?
A. The AC current function is rated CAT III 600 V. The AC/DC voltage functions are rated CAT III 300 V and CAT II 600 V. The applicable rating depends on the measurement function being used.
Q5: Are test leads and batteries included?
A. Yes. The supplied package includes G7 test leads, batteries, a carry pouch with belt loop and an instruction manual.
Get a Quote for the Kewtech KEW2200
Equip your team with a compact clamp meter that combines slim jaws, 1,000 A AC current measurement and essential multimeter functions. Request your Kewtech KEW2200 quotation and tell us your required quantity and delivery requirements.
