Megger
MIT2500 2.5kV Hand-Held Insulation / Continuity Tester


The Megger MIT2500 High Voltage Hand-Held Insulation / Continuity Tester has been designed for higher voltage applications & is utilised by industrial maintenance teams & electrical contractors.

Part Number:
1004-745

read more



Need Help ? Contact Us Request Demo Browse Accessories
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support



Manufacturer's RRP

£1080.00
1296.00 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







Megger MIT2500 Hand-Held High Voltage Insulation / Continuity Tester

The Megger MIT2500 is a combined Insulation and continuity testers designed for industrial maintenance and electrical contractors boasting a lot of power in a very small and convenient package, performing insulation tests with a test voltage up to 2500 V, and measuring insulation resistance up to 200 GΩ.

The MIT2500 is a tough, CAT IV, 600V 3–wire tester using the well-established Megger guard terminal technology to ensure that surface leakage is discounted when making a measurement.



Megger MIT2500 is perfect for:

  • Commercial Avionics
  • Military land, marine and air communications
  • Manufacturing/production line goods
  • Electrostatic measurement
  • Component testing
  • Battery-powered traction and lifting equipment



What‘s New With The Megger MIT2500?

  • Insulation testing up to 2.5 kV (NEW) and 200 GΩ range in a hand held instrument
  • Guard terminal for high resistance accuracy (NEW)
  • Adjustable insulation test voltage from  50 V to 2500 V (NEW)
  • Stabilised insulation test voltage (NEW)
  • Rechargeable options for mains and car charging (NEW)
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ (NEW)
  • Test voltages (NEW)
    • 50 V, 100 V, 250 V, 500 V, 1000 V, and 2500 V
  • 2.5 kV Silicone test leads (NEW)
    • Purpose-designed high 2.5 kV silicone test leads are included as well as standard 1000 V CAT III / 600 V CAT IV general purpose test leads
  • Variable test voltage (NEW)
    • Adjustable test voltage from 50 V to 999 V in 1 V steps, 1000 V to 2500 V in 10 V steps
  • Test voltage display (NEW)
    • The actual test voltage is displayed on the smaller digital readout, with the measurement on the larger digital display
  • Measurement voltage display (NEW)
    • The measurement voltage is displayed during the test
  • Variable insulation voltage (NEW)
    • Provides a unique solution for awkward insulation voltage measurement applications. The range option allows an insulation test voltage from 50 V to 999 V in 1 V steps,  or 1.0 kV to 2.5 kV in 10 V steps



Other Megger MIT2500 Key Features:

  • Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
  • CAT IV 600 V applications
  • Analogue arc
  • 2% Test voltage accuracy
  • Stabilised test voltage
  • Measurement range displayed
  • The range voltage is displayed during selection.
  • Timed testing
  • 200 GΩ range
  • Test inhibit
  • Insulation buzzer
  • Test lock



Continuity (Resistance) Testing - What‘s New?

  • Single resistance range (NEW)
    • One range fully automatic from 0.01 Ω to 1.0 MΩ
  • Auto test current selection
    • Automatically uses the preferred test current for the load resistance under test
  • Bi-directional testing (NEW)
    • Option for automatic bi-directional testing without reconnecting leads
  • Fast response time (NEW)
    • Response time on contact buzzer has been reduced
  • 200 mA or 20 mA
    • Either 200 mA or 20 mA continuity test currents are available. 20 mA test current will considerably increase battery life
  • Lead null
    • Lead resistance compensation (NULL) operates up to 10 Ω of resistance
  • Buzzer
    • ON/OFF selected by simple push button
  • Buzzer limit
    • Continuity buzzer limit alarm provides adjustment of the maximum resistance the continuity buzzer sounds. This is adjustable from 1 Ω to 200 Ω in 12 steps
  • Display PASS/FAIL (✓/x) warnings (NEW)
    • For use where buzzer indication may be disruptive

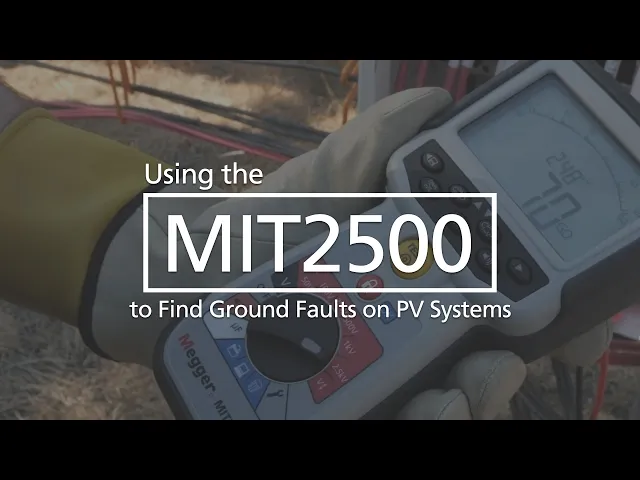

▶ Video: High Performance Guard Terminals on the Megger MIT2500

Video thumbnail for Megger High Performance Guard Terminals



What comes with the Megger MIT2500?

  • Megger MIT2500 Insulation Tester
  • Red/Black/Blue Silicone Test Leads with Probes and Clips
  • 2.5kV Red/Black/Blue Silicone Test Leads with Clips
  • Owners Information CD
  • 6 x AA Alkaline Batteries
  • Carrying Case



Technical Specification for: Megger MIT2500 2.5kV Hand-Held Insulation / Continuity Tester

Insulation
50 V / 100 V
250 V / 500 V / 1000 V
2500 V
VARIABLE voltage from 50 V to 2500 V
PI- / DAR / timed
Lock button on MΩ
Guard terminal
Continuity
Continuity 0.01 Ω - 1 MΩ
Auto reverse polarity (setup ON-OFF)
Lead null (<10 Ω)
Volatage
AC / DC Volts 600 V
mV AC / DC range
Frequency measurement 15 - 400 Hz
Input impedance250 kΩ
Capacitance
Capacitance 0.1 nF - 10 μF
Other Features
PASS/FAIL on limit alarms
Auto power down (setup)
On board memory
Bluetooth® Download and Software
AA Alkaline or NiMH
Recharger ready
CAT IV 600 V
Accessories
Silicone leads (Red/Black/Blue with probes and clips)
2.5 kV Silicone croc clip leads
OPTIONAL Switched probe supplied
OPTIONAL Battery charger available
Product Downloads



Accessory Code Description Price (Ex VAT)
1014-293 2 Lead Set RD/BK Non-Fused (Boxed) £42.50 ADD
1007-157b Remote Switched probe SP5 CAT IV 600 (Boxed) £80.00 ADD
