Megger
TM1800 Circuit Breaker Analyser


Megger TM1800 is portable & rugged, making it suitable for use in any type of environment. The concept is a flexible, modular system that can be easily configured for any type of circuit breaker.

Part Number:
CG-19300

read more



Need Help ? Contact Us Request Demo Browse Accessories
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support



Price On Request

  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







Megger TM1800 Circuit Breaker Analyser

When it comes to protecting substations, transformers, and distribution networks, few tools are as essential as a reliable circuit breaker. Breakers are the guardians of the grid, expected to disconnect faults in milliseconds after long periods of inactivity. If they hesitate or fail, the results can be catastrophic — costly outages, damaged equipment, or even safety incidents.

The Megger TM1800 Circuit Breaker Analyser is designed to prevent exactly that. Rugged, modular, and trusted across the globe, the Megger TM1800 gives maintenance teams the ability to spot problems before they escalate. With its flexible modules, intuitive software, and built-in safety technology, it offers one of the most complete circuit breaker testing solutions on the market today.


Why Reliable Testing Matters

Modern electrical networks rely on circuit breakers that may sit idle for years before suddenly being called upon to act in milliseconds. Mechanical wear, poor lubrication, or environmental stresses like extreme temperatures can all impact performance. Without regular testing, operators risk discovering faults only when it’s too late.

That’s why utilities and industrial operators are moving to condition-based maintenance. Instead of replacing equipment on a fixed schedule, they use diagnostic tools like the Megger Circuit Breaker Analyser to measure actual performance. This approach saves money, reduces downtime, and provides peace of mind that the breaker will operate when it’s needed most.


▶ Video: Megger TM1800 Circuit Breaker Dual Ground Application

Video thumbnail for the Megger Dual-Ground Technology


Key Benefits of the Megger TM1800:

The Megger TM1800 Circuit Breaker Analyser is far more than a timing instrument. It’s a complete diagnostic platform designed with real-world testing challenges in mind:

  • Adaptable modular system – With nine configurable slots, you can build a system that matches today’s needs and expand later as requirements grow.
  • DualGround™ safety – Keep both sides of the breaker safely grounded throughout the test. Operators remain protected from induced currents while tests run quickly and reliably.
  • User-friendly software – CABA Local software provides predefined test templates, instant on-screen results, and built-in guidance, so even new users can get accurate results quickly.
  • Three-step workflow – The "Select-Connect-Inspect" process reduces setup time and simplifies every test, cutting wasted minutes in the field.
  • Clear data visualisation – Results such as timing curves, motion profiles, and coil currents are presented in easy-to-understand graphics for faster decision making.
  • Field-ready construction – Designed for substations and industrial environments, the analyser is rugged, portable, and built to withstand tough conditions.



Where the TM1800 Excels

Because of its flexible design, the Megger TM1800 adapts to virtually any breaker testing application:

  • Distribution breakers – Straightforward single-mechanism designs are tested with speed and accuracy.
  • Transmission breakers – Complex designs with multiple contacts per phase and independent mechanisms are no problem for the TM1800.
  • Breakers with Pre-Insertion Resistor (PIR) contacts – The TM1800 automatically captures the timing of PIR contacts and measures resistance values without additional setups.
  • High-voltage substations – Built-in interference suppression ensures accurate readings even in environments with heavy electrical noise.
  • Condition-based maintenance – Perfect for reliability-centred strategies where accurate data drives smarter maintenance schedules.

This versatility means one analyser can serve an entire fleet of breakers, whether they are SF6, vacuum, oil, or air-blast types.



Simple to Learn, Easy to Use

Megger designed the TM1800 with field engineers in mind. The analyser’s 8-inch sunlight-readable display ensures visibility even outdoors, while the software provides on-screen help at every step. Many connections and test routines are automated, so fewer manual steps are needed and fewer breaker operations are required.

For utilities and service companies, this means less training for staff, faster turnaround on tests, and reduced disruption when taking breakers out of service.



Expandable with Accessories

The Megger TM1800 Circuit Breaker Analyser is part of a complete ecosystem of accessories that expand its capabilities:

  • Motion transducers and universal mounting kits for detailed mechanical analysis
  • Dynamic Resistance Measurement (DRM) modules to capture contact wear
  • First Trip test kits to reveal hidden problems on rarely operated breakers
  • Vibration analysis add-ons for detecting mechanical issues early
  • Software upgrades like CABA Win for centralised data storage and advanced reporting

Because of its modular design, the TM1800 can grow alongside your testing requirements, ensuring long-term value.



Megger TM1800 Models Compared

Choosing the right analyser depends on your testing environment and safety requirements. Here’s how the four available models compare:

ModelKey FeaturesBest For
TM1800 StandardCore platform with modular design and nine slots. Includes CABA Local software for timing, motion, and coil current tests.Routine breaker maintenance and general field use.
TM1800 Standard – DualGround™All Standard functions plus the DCM module, allowing DualGround™ safety testing with both sides grounded.Utilities and service providers prioritising maximum operator safety.
TM1800 ExpertEnhanced capacity for complex breakers, multiple contact measurements, and advanced diagnostics.Transmission systems and industrial sites requiring deeper analysis.
TM1800 Expert – DualGround™Combines the advanced functions of the Expert model with full DualGround™ protection.Critical infrastructure and high-voltage substations needing the safest, most comprehensive solution.



Why Choose the Megger TM1800?

When you invest in the Megger TM1800 Circuit Breaker Analyser, you’re choosing:

  • Safety – Protect operators with proven DualGround™ technology.
  • Efficiency – Cut down on test times thanks to automated processes and intuitive workflows.
  • Reliability – Count on a device built to perform in demanding substation conditions.
  • Future-proofing – Add modules and accessories as your testing needs evolve.

It’s more than just a test instrument - it’s a long-term partner in ensuring your grid runs smoothly.



❓ Frequently Asked Questions (FAQ)

Q1: What sets the Megger TM1800 apart from other breaker analysers?

A: Its modular platform and DualGround™ safety features make it stand out. It adapts to every breaker type and delivers safer, more efficient testing than conventional systems.

Q2: Can it handle complex transmission breakers?

A: Yes. The Megger TM1800 can test multiple contacts per phase, PIR contacts, and even breakers with separate operating mechanisms.

Q3: Is it difficult to use?

A: Not at all. The intuitive CABA Local software and simplified workflow mean minimal training is required.

Q4: Can the TM1800 be expanded later?

A: Absolutely. Its modular design allows you to add new measurement modules and accessories whenever your needs change.

Q5: Will it work in harsh substation conditions?

A: Yes. The TM1800 is built for rugged environments and includes protection against electrical interference.



Have A More Complex Transmission Set-Up?

Distribution circuit breakers, which typically use a single contact per phase and one operating mechanism, are relatively straightforward to test. Transmission circuit breakers, on the other hand, are often more sophisticated, incorporating multiple contacts per phase and independent operating mechanisms. Despite this added complexity, the TM1800 is fully equipped to measure all critical parameters.

For example, when testing breakers fitted with pre-insertion resistor (PIR) contacts, the TM1800 automatically records the timing of both the main and PIR contacts, as well as the resistance value of the PIR itself. Operation is streamlined through the CABA Local interface — a clear and intuitive system displayed on an 8-inch trans-reflective screen designed for optimal visibility, even in direct sunlight.

CABA Local has been developed to simplify both set-up and analysis, offering built-in guidance and context-sensitive help throughout the testing process. The TM1800 also minimises the number of connecting leads required and incorporates automated functions to reduce manual tasks and the number of breaker operations needed. The result is a system that not only shortens testing time but also lowers training requirements, ensuring efficient and effective use from the start.

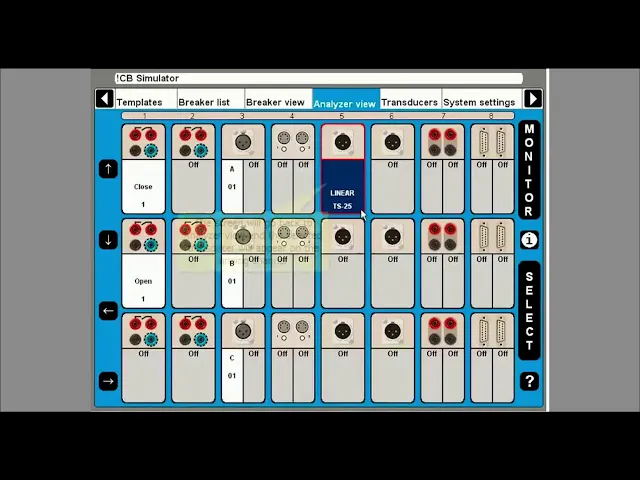

▶ Discover the Megger CABA LOCAL Circuit Breaker Software

Video thumbnail for the Megger CABA LOCAL Circuit Breaker Software



Ready to upgrade your Circuit Breaker Analysis?

The Megger TM1800 Circuit Breaker Analyser is the industry standard for safe, reliable, and efficient breaker testing. Whether you’re maintaining a local distribution network or managing a major transmission system, the TM1800 delivers the flexibility and accuracy you need.

Get the right test equipment at the right price — contact us now for a fast, competitive quote.

💬 Talk to the Experts

Our team is ready to discuss your requirements. Get straightforward advice, proven performance, and reliable solutions that work.

📍 Want to See It in Action?

We’ll bring the demo to you. Book a live on-site demonstration and see our test equipment perform in real-world conditions.



Technical Specification for: Megger TM1800 Circuit Breaker Analyser



Accessory Code Description Price (Ex VAT)
BL-90600 Current Sensor Kit 1 Channel TM1600 £1,500.00 ADD
BL-90610 Current Sensor Kit 3 Channel TM1600 £3,730.00 ADD
CG-19180 TM1700/1800 DCM 3-ch cables addition DualGround Upgrade 3 cables kit from 3 to 6-ch price on request
CG-19181 TM1700/1800 DCM 3-ch cable extension 10m - DualGround cable extension 10m £430.00 ADD
CG-90090 Ext.TempSensorKit TM1800 price on request
CG-90205 SDRM 202 separate Cable for TM1800 Only for upgrade (length 0 2m) price on request
CG-91200 Synchronized Switching Relay test kit: Incl. accessories software cables and transport case price on request
GA-00040 Cable 3 1m XLR/Banana MA61 £129.00 ADD
GA-00840 Cable Reel 20 m black TM1800 CG0228AE £470.00 ADD
GA-00842 Cable Reel 20 m red TM1800 CG0230AE £470.00 ADD
GA-00844 Cable Reel 20 m yellow TM1800 CG0231AE £470.00 ADD
GA-00845 Cable Reel 20 m green TM1800 £470.00 ADD
GA-00846 Cable Reel 20 m blue TM1800 £470.00 ADD
GA-00850 Cable Timing T/MR TM1800 (1of3) £345.00 ADD
GA-00851 Cable Timing T/MR Extension TM1800 R100 £147.00 ADD
GA-00867 Adapter for Doble Transducer Cable 0.3 m £128.00 ADD
GA-00868 Adapter for Siemens Transducer £205.00 ADD
GA-00870 Cable AUX TM1800 5m £430.00 ADD
GA-00885 Open incremental transducer cable CG0077BE price on request
GA-00890 L & L digital cable For using Leine & Linde 530 digital transducer TM1800 price on request
GA-00895 Baumer digital cable For using Baumer digital transducer price on request
GA-01000 Open Analog Cable TM1800 CG0184BE £66.00 ADD
GA-01005 Analog Cable Egil/TM1600/TM1800 10m price on request
GD-00350 Transport case TM1800 £1,320.00 ADD
XB-30020 Transducer TLH-500 with cable GA-00049 price on request
XB-30030 Transducer TS-150 with cable GA-00044 price on request
XB-30033 Transducer TS-25 with cable GA-00044 price on request
XB-30117 Transducer LWG-225 with cable GA-00050 price on request
XB-31010 Rotary Transducer Analog £725.00 ADD
XB-32010 Transducer DYTRAN 3200B5 1/4-28 incl. GA-00052 £3,010.00 ADD
XB-39030 Transducer Flex coupling d:6mm £135.00 ADD
XB-39130 Rotary Transducer Digital £1,500.00 ADD
XB-51010 Rotary Transd. Mount Kit £1,445.00 ADD
XB-51020 Universal Transd.MountKit price on request
XB-61010 LTB Kit: Incl. mounting kit XB-51010 Software conversion table BL-8730X £1,745.00 ADD
XB-61020 HPL/BLG Kit: Incl. mounting kit XB-51010 Software conversion table BL-8720X £1,745.00 ADD
XB-71010 Ready-to-use 1-ph Analog £2,020.00 ADD
XB-71013 Ready-to-use 3-ph Analog £6,070.00 ADD
XB-71020 Ready-to-use 1-ph Digital £2,765.00 ADD
XB-71023 Ready-to-use 3-ph Digital £8,195.00 ADD
GA-90005 HV timing cable kit; 5x10m £450.00 ADD
