Metrel MI 3107 EurotestEASI Touch Multifunctional Tester
Make light work of installation testing. Keep your next inspection moving.
Bring your essential electrical installation tests together with the Metrel MI 3107 EurotestEASI Touch. From insulation resistance and continuity to RCD, loop impedance and earth resistance testing, this compact instrument gives electricians a practical way to tackle everyday inspection work. Its 4.3-inch colour touchscreen, automated test routines and built-in guidance help streamline the steps between setting up a test and saving the result.
Designed for initial and periodic testing of domestic and small-office installations, this Metrel Multifunction Tester combines straightforward operation with the measurement functions needed for TT and TN systems. Add compatible software licences and accessories to build a testing package around the work you do.
Request a quote for the Metrel MI 3107 today. Tell us your testing requirements and ask for pricing, availability and the accessories you need in one enquiry.

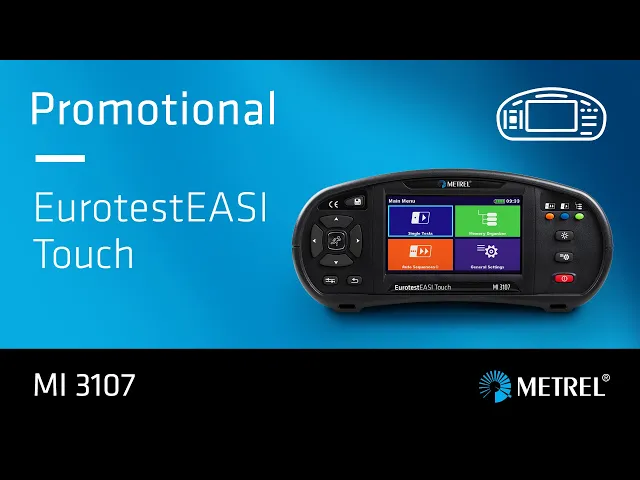

▶ Metrel MI3107 Features and Demonstrations:
Metrel MI 3107 EurotestEASI Touch Key Features:
- Clear touchscreen control: Prepare tests and store measurements using the 4.3-inch TFT colour display, with built-in help screens for reference on site
- Automated testing: Use RCD AUTO, predefined AUTO SEQUENCEs and Auto TT, Auto TT RCD, Auto TN and Auto TN RCD routines to streamline repeat tasks
- Five insulation test voltages: Select 50, 100, 250, 500 or 1,000 V to suit the measurement requirement
- Continuity testing with automatic polarity reversal: Includes 200 mA and 8.5 mA two-wire test functions
- Line and loop impedance measurements: Test L-L, L-N and L-PE paths, with a dedicated Zs RCD function and built-in fuse tables for automatic result evaluation
- RCD test functions: Measure trip time, ramp trip current and contact voltage, with separate selection of RCD type and test current waveform
- Three-wire earth resistance testing: Measure earth resistance using an appropriate optional earth-testing set
- Live voltage monitoring: View L-N, L-PE and N-PE voltages in real time
- Rechargeable power: A 5.2 Ah lithium-ion battery and USB-C charging support a practical, portable set-up. The specified charging input is 15 V, 3 A, 45 W
- Connected working: USB-C, Bluetooth and Wi-Fi connectivity support data handling, with Metrel ES Manager and Metrel Cloud options. Advanced reporting and cloud workflows require the relevant licences
Why Choose the Metrel MI 3107 EurotestEASI Touch?
✓ Keep routine inspections moving
Repeated set-up steps can slow down a busy testing schedule. The MI 3107 brings predefined test routines, automatic continuity polarity reversal and on-screen help into one interface, helping you work through routine measurements more efficiently. Built-in fuse tables also assist with evaluating line and loop impedance results.
✓ Carry more testing capability in one instrument
Combine the principal installation-testing functions in an ergonomic instrument weighing 1.4 kg. Whether you are checking a domestic installation, troubleshooting a small-office circuit or testing after maintenance, the MI 3107 offers a convenient starting point for your equipment kit.
✓ Connect site measurements with reporting
Plan a workflow that extends beyond the instrument. Metrel ES Manager supports test structures, reporting and archiving, while compatible Metrel Cloud services support connected measurement planning and data management. The Basic Set includes an ES Manager BASIC licence; the advanced functions described by Metrel require MESM PRO and Metrel Cloud licences, as applicable.
What Comes with the Metrel MI 3107 EurotestEASI Touch?
The manufacturer’s MI 3107 Basic Set (BS) includes:
- MI 3107 EurotestEASI Touch Instrument
- 3 x Test Probes (black, blue and green)
- 3 x Crocodile Clips (black, blue and green)
- A 1193 (black/green/blue) Test Cable, 1.5 m, 0.75 mm²
- A 1053 Test Cable, 1.5 m, 0.75 mm²
- A 1857 USB Type-C cable
- A 1707 Belt, Size S
- Calibration Certificate
- Short Instruction Manual
- Metrel ES Manager BASIC Licence, with downloadable SW 1201 software and full instruction manual
Tailor your kit: Optional accessories include the A 1860 power supply, A 1289 padded carrying bag, S 2026 20 m or S 2027 50 m earth measurement sets, and A 1532 XA EVSE Adapter XA. Ask for your required UK test lead configuration, accessories and software licences to be included in your quotation.
Specifications
| Features | |
| Display | 4.3-inch colour TFT touchscreen, 480 × 272 pixels |
| Insulation test voltages | 50, 100, 250, 500 and 1,000 V |
| Insulation resistance range | Up to 199.9 MΩ at 50/100/250 V; up to 999 MΩ at 500/1,000 V |
| Continuity | Two-wire testing at 200 mA or 8.5 mA; measuring range up to 1,999 Ω |
| Line and loop impedance | 0.00 Ω to 9.99 kΩ; resolution from 0.01 Ω |
| Zs RCD impedance | 0.00 Ω to 9.99 kΩ |
| Earth resistance | Three-wire method; 0.00 Ω to 9,999 Ω |
| RCD measurements | Contact voltage, trip time and ramp trip current; RCD AUTO procedure |
| Voltage measurement | 0 to 550 V |
| Frequency measurement | 14.0 to 499.9 Hz |
| Battery | 7.2 V, 5,200 mAh lithium-ion battery pack |
| USB-C charging | 15 V, 3 A, 45 W |
| Connectivity | USB Type-C, Bluetooth and Wi-Fi |
| Measurement categories | CAT III 600 V / CAT IV 300 V |
| Protection class | Double insulation |
| Dimensions, L × H × W | 230 × 103 × 115 mm |
| Weight | 1.4 kg |
| At the 1,000 V insulation test setting, readings from 200 to 999 MΩ are specified as indicative. Resolution and accuracy vary with the selected function and range. |
❓ Frequently Asked Questions (FAQ)
Q1: What is the Metrel MI3107 used for?
A. The Metrel MI3107 is a multifunction electrical installation tester for initial and periodic inspections, fault finding and maintenance checks. Its intended applications include domestic and small-office low-voltage installations, with functions for TT and TN systems.
Q2: Can the MI 3107 be used for EV charge point testing?
A. Yes. Metrel lists EV supply equipment testing among its applications and identifies the A 1532 XA EVSE Adapter XA and A 1632 eMobility Analyser as compatible equipment. Include your charge point testing requirements in your enquiry so the appropriate accessories can be specified.
Q3: Does it measure earth resistance?
A. Yes. It provides three-wire earth resistance measurement up to 9,999 Ω. The S 2026 20 m and S 2027 50 m earth measurement sets are optional accessories and are listed separately from the Basic Set.
Q4: Is reporting software included?
A. The manufacturer’s Basic Set includes a Metrel ES Manager BASIC licence, with the software available to download. Advanced reporting and connected cloud functions require additional MESM PRO and Metrel Cloud licences, as applicable.
Q5: Is a power supply included in the Basic Set?
A. The listed Basic Set includes a USB-C cable. The A 1860 15 V, 3 A power supply is listed as an optional accessory, so include it in your quotation request if required.
Q6: Does the tester come with a calibration certificate?
A. Yes. A calibration certificate is included in the manufacturer’s MI 3107 Basic Set.
Get a Quote for the Metrel MI 3107
Put touchscreen control, automated routines and essential installation tests to work on your next inspection. Request your Metrel MI 3107 EurotestEASI Touch quotation and tell us the quantity, applications and accessories you need, so your enquiry covers the complete testing package.
