testo 515 Ex - Combination Leak Detector - Gas and Refrigeration
Choose a leak detector that can adapt to the work in front of you. The testo 515 Ex combination leak detector supports gas and refrigerant detection through interchangeable sensors, giving heating, refrigeration and air conditioning engineers a flexible option for varied service work.
With leak sensitivity down to 1 g/year, rapid response and ATEX certification for Zone 2 applications, it brings precise leak tracing to demanding jobs. Select the Gas, Refrigeration or Gas & Refrigeration kit to suit your needs.
Request a quote and speak to our team about the right testo 515 Ex kit for your application.
testo 515 Ex Key Features:
- High sensitivity: detects leak rates down to 1 g/year in High+ mode.
- Rapid leak tracing: response and recovery times under two seconds.
- Flexible reach: a robust gooseneck probe helps access confined areas.
- Clear visual feedback: colour display with numeric, bar-graph and trend views.
- Multiple alerts: visual, audible and vibration alarms help draw attention to leaks.
- Adaptable detection: interchangeable sensors support flammable gas and refrigerant applications.
Why choose the testo 515 Ex?
Choose the Gas kit for flammable gas applications, the Refrigeration kit for refrigerant leak checks, or the combined kit when your workload includes both. This gives you a clear starting point while leaving room to expand your detector’s capability later.
The trend display helps you follow changes during leak tracing, while rechargeable power and an eight-hour battery life support everyday servicing. Zone 2 ATEX certification makes the testo 515 Ex relevant to applications requiring this level of explosion protection.

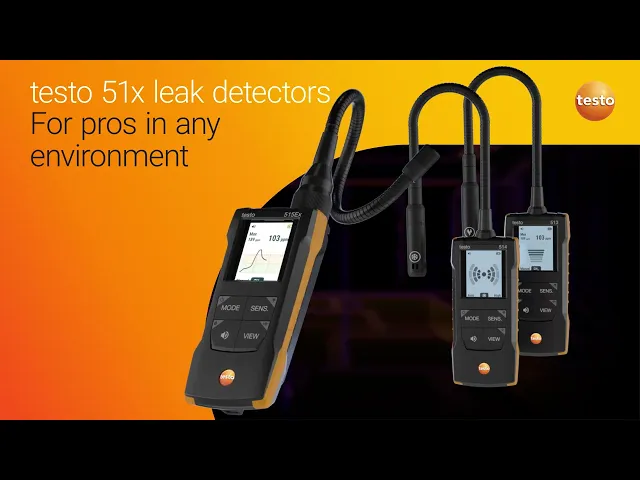

▶ testo 51x range launch video:
What Comes with the testo 515 Ex?
Every kit includes:
- testo 515 Ex detector
- Soft case
- Filters
- Protective cap
- USB-C cable
The sensors supplied depend on your chosen variant:
| Variant | Product code | Sensors included |
| Gas & Refrigeration | 0563 0515 | Gas and refrigerant sensors |
| Gas | 0563 1515 | Gas sensor |
| Refrigeration | 0563 2515 | Refrigerant sensor |
Specifications:
Detection capability depends on the sensor fitted.
| Specification | Detail |
| Detectable gases | Methane, propane, butane and hydrogen (forming gas) |
| Refrigerant compatibility | HCFC, HFC, HFO, HCFO, HC (R290) and blends |
| Gas detection range | 1 ppm to 1.0 vol.% |
| Sensitivity settings | 1 g/year (High+); 3 g/year (High); 14 g/year (Low) |
| Probe length, including sensor | 295 mm |
| Power and battery life | Rechargeable lithium-ion battery; 8 hours |
| Hazardous area certification | ATEX, Zone 2 |
❓ Frequently Asked Questions (FAQ)
Q1: Do all three kits include both sensors?
A. Only the Gas & Refrigeration kit, product code 0563 0515, includes both. The other kits include the sensor shown in the table above.
Q2: Can I add another sensor later?
A. Yes. Compatible gas and refrigerant sensors are available separately, allowing you to expand a single-sensor kit.
Q3: Does the Refrigeration kit detect R290?
A. Yes. Its supplied refrigerant sensor detects R290 (propane), alongside the other listed refrigerant groups.
