Testo 565i EX – ATEX-Certified Vacuum Pump
- Designed for A2L & A3 Refrigerants
Choose the Testo 565i EX when you need a high-performance ATEX Vacuum Pump for modern refrigeration, air-conditioning and heat pump work. The Testo 565i EX combines 7 CFM / 198 l/min evacuation performance, a 15-micron ultimate vacuum, Bluetooth connectivity and ATEX certification for Zone 2 applications. This ATEX Vacuum Pump is compatible with A2L and A3 refrigerants and can form part of an automated, documented evacuation workflow using compatible Testo instruments and the testo Smart App.
Need pricing or help selecting the right set-up? Request a quote for the Testo 565i EX today.

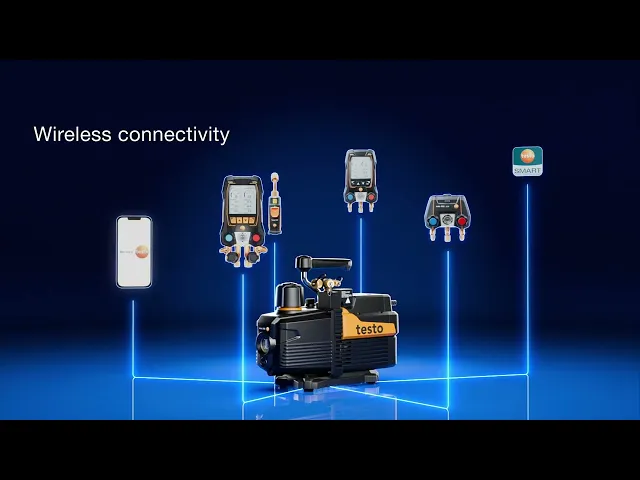

▶ See the Testo 565i EX ATEX Vacuum Pump in Action:
Why Choose the Testo 565i EX?
The Testo 565i EX is built for faster evacuation, modern refrigerant applications and more efficient documentation. As an ATEX Vacuum Pump, it is designed for use in potentially explosive Zone 2 atmospheres when operated in accordance with Testo‘s specified restrictions and safety procedures. The pump complies with the ATEX directive and carries certificate number CSANe 26ATEX1095X.
The Testo 565i EX connects by Bluetooth to compatible Testo equipment and the testo Smart App. with a compatible ATEX-certified Bluetooth pressure sensor, the unit can be configured with target vacuum values, automatically stop when the target is achieved and begin a vacuum hold test. An Auto Re-Start function can also repeat evacuation and hold-test cycles according to your configured settings.
For engineers handling flammable refrigerants, this connected ATEX Vacuum Pump provides a practical solution for modern commissioning, servicing and maintenance workflows.
Testo 565i EX Key Features:
- ATEX certified – Suitable for Zone 2 applications
- A2L and A3 compatible – Supports modern flammable refrigerants
- 7 CFM flow rate – Fast evacuation at 198 l/min
- 15-micron ultimate vacuum – For deep system evacuation
- Bluetooth connectivity – Connects to compatible Testo instruments and the testo Smart App
- Automatic hold testing – Stops at the target vacuum and starts a hold test when used with compatible equipment
- Auto Re-Start – Repeats evacuation and hold-test cycles automatically
- Three SAE connections – 1/4", 3/8" and 1/2" SAE ports
- Easy oil checks – Integrated sight glass for quick oil-level inspection
- Non-return valve – Helps prevent vacuum loss during a power failure
- Two-stage rotary vane pump – Built for professional refrigeration and HVAC work
Specifications:
| Features | |
| Product | Testo 565i EX |
| Type | ATEX Vacuum Pump |
| Model Number | 0564 5654 |
| Pump Design | Two-stage rotary vane pump |
| Flow Rate | 198 l/min / 7 CFM |
| Ultimate Vacuum | 15 microns |
| Voltage | 220–240 V AC, 50/60 Hz |
| Rated Current | 1.9 A |
| Intake Ports | 1/4", 3/8" and 1/2" SAE |
| Operating Temperature | +5 to +40°C |
| Storage & Transport Temperature | -10 to +50°C |
| Dimensions | 427 x 158 x 228 mm |
| Weight | Approx. 14 kg |
| Protection Class | IP20 |
| Bluetooth Range | Up to 30 m in free field |
| Refrigerant Suitability | A2L / A3 compatible |
| ATEX Certification | Zone 2; Certificate CSANe 26ATEX1095X |
Applications:
- Refrigeration system evacuation before charging
- Heat pump installation and commissioning
- A2L refrigerant systems such as R32
- A3 refrigerant applications including R290 and R600a
- Industrial refrigeration servicing and maintenance
- Vacuum hold testing with a compatible pressure sensor
- Digitally documented evacuation using the testo Smart App
What Comes with the Testo 565i EX?
- Testo 565i EX ATEX Vacuum Pump
- 330 ml vacuum pump oil
❓ Frequently Asked Questions (FAQ)
Q1: Is the Testo 565i EX suitable for A2L and A3 refrigerants?
A. Yes. The Testo 565i EX is designed for a broad range of refrigeration applications involving A2L and A3 refrigerants. This makes the ATEX Vacuum Pump particularly suitable for modern low-GWP refrigeration and heat pump systems. Always check the Testo 565i EX operating instructions for approved refrigerants and follow applicable local regulations before use.
Q2: Can the Testo 565i EX be used in Zone 2?
A. Yes, within its certified scope and operating conditions. The Testo 565i EX is an ATEX Vacuum Pump certified for use in potentially explosive Zone 2 atmospheres. Users must follow Testo’s operating instructions relating to temporary hazardous zones, ventilation, electrical connections and ignition-source control.
Q3: Does the Testo 565i EX connect to the testo Smart App?
A. Yes. The Testo 565i EX features Bluetooth connectivity and can connect to the testo Smart App. This enables configuration, monitoring and evaluation of evacuation data, helping the ATEX Vacuum Pump support a more efficient and documented workflow.
Q4: Can the Testo 565i EX work with the testo 552i vacuum probe?
A. Yes. For applications outside Ex zones, the Testo 565i EX can be used with the testo 552i vacuum probe to automate the evacuation process. Once the target vacuum is reached, the pump can stop automatically and begin a vacuum holding test. For hazardous-area work, only equipment certified for the applicable zone should be used with the ATEX Vacuum Pump.
