Fameca
SPCCS140WI Power Cables Spiking; Cutting Tool


Fameca SPCCS140WI Power Cables Spiking & Cutting Tool (check for absence of voltage on LV & MV underground cables before safely cutting).

Part Number:
SPCCS140WI

read more



Need Help ? Contact Us Request Demo
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support



Manufacturer's RRP

£12413.00
14895.60 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support







Fameca SPCCS140WI Power Cables Spiking and Cutting Tool

The Fameca SPCCS140WI has been designed with the following functions:

  • Spiking cable to check and ensure the absence of voltage on LV and MV underground cables
  • Allows safe cutting after spiking operation
  • Total security for the user according to NFC 18510



The PICOUP ultra-safe are integrated electrohydraulic cable cutters without hydraulic hose to check the absence of voltage on underground power cables. Use the following cables:

Fameca SPCCS100SI



Fameca SPCCS140WI Key Features:

  • 2 actions combined into one single tool (spiking and cutting)
  • Enables the user to limit any resulting short circuit to a single-phase/ground fault when spiking multi-core cables
    • This causes any protective devices to trip before a 2 or 3 phases fault can be created
  • In the event of spiking a live cable, the spiking blade can be replaced easily (minimising cost impact)
  • No physical connection between the tool and the user
  • Damage to infrastructure is minimised when spiking as a single phase to earth fault is created using a dedicated, local 70mm² copper earthing cable
  • Cutting failure sensor
  • Indication on the remote to let the user know the cutting operation has come to an end
  • Hydraulic over-pressure safety valve
  • Battery indicator for charge status
  • Start of cutting is prevented if the battery is low
  • Cutting capacity: diameter 140 mm
  • Metal armour: round wires 4 mm
  • Cutting force: 21000 kg
  • 24V DC operation
  • Autonomy: 20 cuts
  • Dimensions L x W x H: 678 x 188 x 320 mm
  • Weight: 20 kg

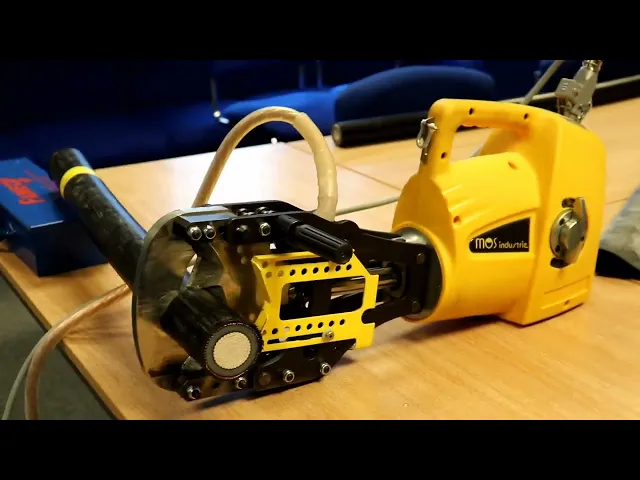

▶ Video: Fameca SPCCS140WI Power Cables Spiking & Cutting Tool:

Thumbnail for the Fameca SPCCS140WI Power Cables Spiking & Cutting Tool Video



Hardware diagram of the Fameca SPCCS140WI:

  1. Electric connector, with locking cap, positioned on the top of the tool for better protection
  2. Dual effect hydraulic selector
  3. 3 fixing points
  4. Rotating handle: Positioning tool on cable
  5. Foldable front handle
  6. Function and easy to use remote control Range: up to 150 m



Hardware diagram Fameca SPCCS140WI Cutting Tool



Comparison Chart for: Fameca SPCCS140WI Power Cables Spiking; Cutting Tool

SPCCS100SISPCCS140WISPCCS80SI
Characteristics of cables to be cut:
Copper conductors
Aluminum conductors
Round wire armour (diameter)4mm
Flat wire armour (thickness)24mm1mm
Strip armour (thickness)24mm1mm
Fault following network protection:
FusesThree-phase faultThree-phase faultThree-phase fault
Circuit breakerSingle phase fault on one phaseSingle phase fault on one phaseSingle phase fault
Earthing cables:
SCI 18kA/1s - 25kA/0.5s (section mm2)70Cu70Cu
SCI 7.5kA 1s or 10.5kA 0.5s (section mm2)50 AI 2m
SCI 9kA 1s or 13kA 0.5s (section mm2)35 Cu 3m
Cutting head:
Maximum cutting diameter (mm)10014080
Weight without earthing cable (kg)14204.5
Dimensions (mm)625 x 165 x 328678 x 188 x 320678 x 188 x 320
Cutting blade hardness (Hrc)555555
Anti-corrosion treatment of the bladesZinc platingZinc platingOil hardened
Replaceable pick
Pick hardness (Hrc)6255
Cutting force (ton)13217.5
Integrated electro-hydraulic pump:
Hydraulic pressure (bar)700700700
Interchangeable battery (BOSCH)24v 3Ah24v 3Ah18v 2Ah
Blade reopeningLever & spring returnSelector & hydraulic returnDecompression button & spring return
Oil volume (ml)30030048
Remote control:
Indicative transmission distance / battery100m / 1.5V AAA100m / 1.5V AAA25m / CR2032
Radio frequencyRadio 868 MhzRadio 868 MhzBluetooth 2.4 GHz (Smartphone possible - App Android)
Indicator lights (flashing / fixed)Green led (cutting in progress / end of cut)Green led (cutting in progress / end of cut)Left green LED (cut indication)
Yellow Led (transmission ok / -)Yellow Led (transmission ok / -)Right green LED (connexion status with tool)
Red Led (- / problem on tool see manual)Red Led (- / problem on tool see manual)
Packaging / miscellaneous:
Total weight in soft case (kg)28349.5
Dimensions in soft case (mm)670 x 180 x 340670 x 180 x 340750 x 150 x 190
Total weight in rigid case (kg)3542
Dimensions in rigid case (mm)687 x 528 x 376687 x 528 x 376
Operating temperature (°C)-20/50-20/50-20/50
